NU-0528i-B

item number: V0000106

from -- €
Make your choice
send inquiry for this product
  • Description
  • Specs
  • Downloads
  • Related Products

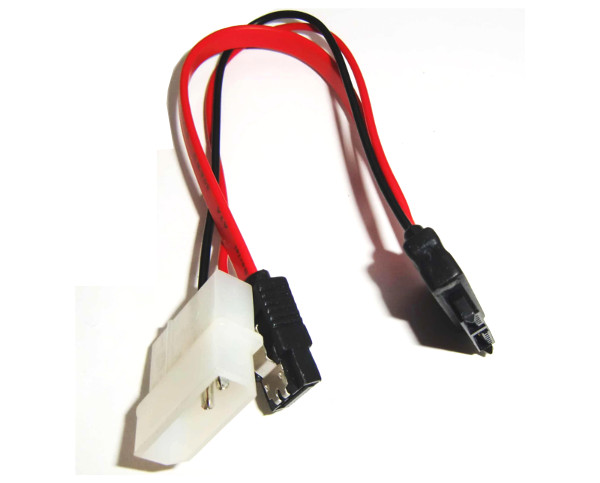

  • USB Combo USB 3.0 + USB 2.0 - 2in1 cable
  • Thermally advantaged mini ITX slim chassis with internal Flex power supply or external solution
  • Supports eSATA (at rear panel)
  • Various configurations of drives and add-on cards to fit your needs

    A perfect thin client solution for low cost, low power consumption and compact systems using Intel desktop board. Thermally advantaged mini ITX slim chassis with internal power supply or external power solution.

    Optional Card Reader (at front panel) with sticker, supports SD/MS 2 type memory cards

    * If you need to upgrade this product with suitable items, please review related products and product selection.
  • SPECIFICATIONS:
    Drive Bays 1 x 5.25" slim ODD (exposed)

    2 x 2.5" (hidden)

    1 x 3.5" HDD cage (optional)*

    *ODD is not compatible with this configuration and might not work with higher heat sink size
    Front I/O Access 2 x USB ports

    1 x High Definition Azalia Audio & MIC
    Expansion Slots 1 x low profile add-on card

    1 x full height add-on card (riser card required)*

    *ODD and HDD cage are not compatible with this configuration
    Mainboard Mini ITX (not included)
    Power Supply internal: 200W 80Plus / 250W 80Plus bronze

    external: AC Power Adapter 90W w/internal power board DC to DC 80W
    Ventilation 1 x 60x20mm cooling fan (not included)
    Colour Black
    Dimensions 88mm (W) x 254mm (H) x 218.8mm (D)
    Weight N.W./G.W. 3 Kg / 3,2 Kg (without power supply)
    Complies with CE & FCC, RoHS

    Art nr Case PSU Card Reader USB Price Add AV
    A 2562 NU-0528i-B-CU3 Mini ITX case only RoHS - - CU3 --
    Product in stock
    A 2560 NU-0528i-B-CU3 Mini ITX + ENP-200W 80+ EUP RoHS 200W ENP - CU3 --
    available soon
    A 2561 NU-0528i-B-CU3 Mini ITX + ENP-250W 80+ EUP RoHS 250W ENP - CU3 --
    available soon
