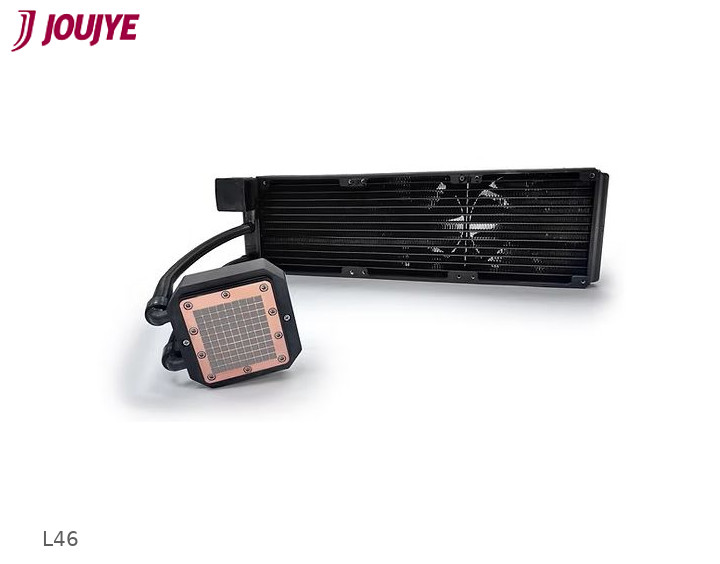

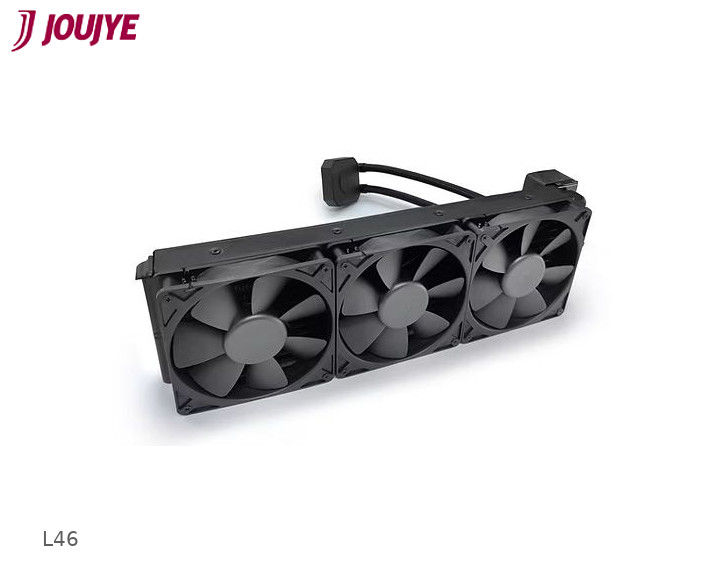

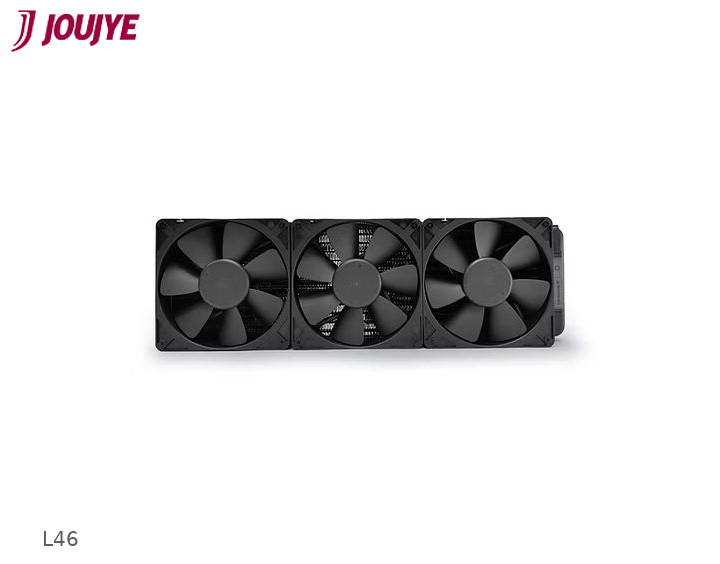

Cooler L46 Water Cooling Multi Socket for PC tower

item no.: A 2869

Not in stock
-- €
send inquiry for this product
  • Description
  • Specs
  • Downloads
  • Related Products

  • Support CPU Power up to 250W
  • For Intel and AMD
  • For Desktop Tower Chassis
  • Desktop Liquid Cooling Solution Recommended for :


    - Intel Socket LGA 1200/115x
    - LGA 1851/1700
    - LGA 2011 Square
    - LGA 1356/1366
    - AMD FM2/FM1,AM3,AM2+,AM2, AM4/AM5

    • SPECIFICATIONS:
    Application
    For Intel and AMD CPU Models As Following Intel Socket LGA1200/115X/1851/1700/2011 Square/1356/1366

    AMD FM2/FM1/AM3/AM2+/AM2/AM4/AM5

    For Desktop Tower Chassis
    Overall Description :
  • Cold Plate Module with Copper base
  • Space-saving lightweight Radiator
  • Tripple 12cm Cooling Fans with 4-Pin PWM Function
  • Stand-alone Water Pump with Powerful Flow Rate 1.7 Litter Per Minute
  • 30 cm Black Pair EPDM Tube Assembled
  • Mounting Accessories are included
  • Shin-Etsu Series Thermal Compound Pre-Printed on Base
  • Support CPU Overclocking Power Mode up to 250 Watts Heat Dissipation
    • Cooling Fan Specification:
  • Model Number: DF121238BH
  • Dimension: 120 x 120 x 25mm
  • Bearing: Double ball
  • Rated Voltage: 12V
    • Rated speed At Duty Cycle 0~20%: 600±10% RPM
    At Duty Cycle 50%: 1650±10% RPM
    At Duty Cycle 100%: 2200±10% RPM
    Rated Input Power At Duty Cycle 0~20%: 0.6W
    At Duty Cycle 50%: 1.92W
    At Duty Cycle 100%: 5.4W
    Rated Airflow At Duty Cycle 0~20%: 23 CFM
    At Duty Cycle 50%: 63.3 CFM
    At Duty Cycle 100%: 92 CFM
    Rated Acoustical Noise At Duty Cycle 0~20%: 16 dBA
    At Duty Cycle 50%: 29.8 dBA
    At Duty Cycle 50%: 38 dBA
    Rated Static Pressure At Duty Cycle 0~20%: 0.28 mm-H2O
    At Duty Cycle 50%: 2.13 mm-H2O
    At Duty Cycle 100%: 4.5 mm-H2O
