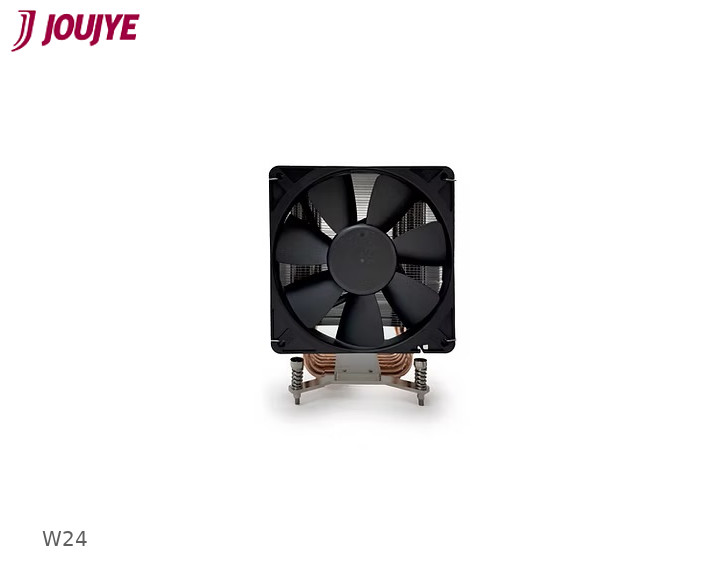

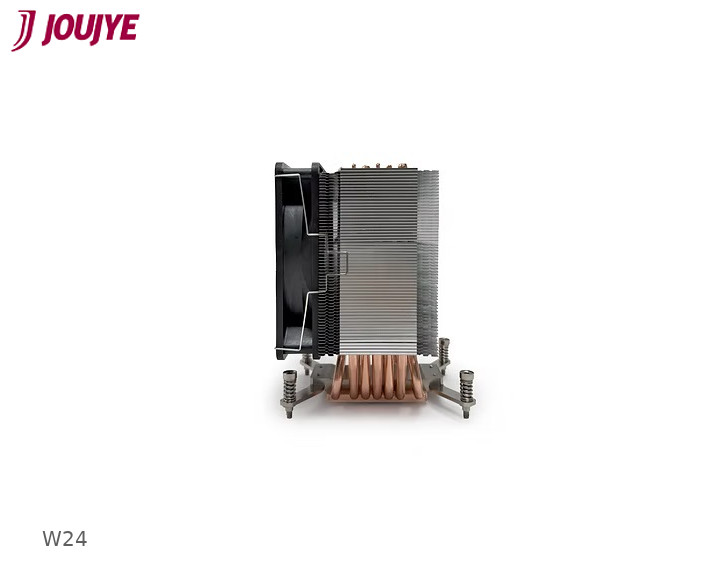

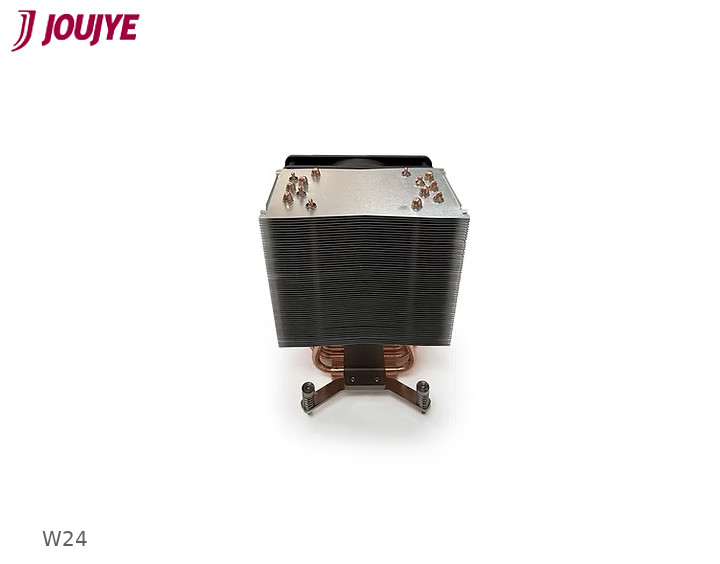

Cooler W24 AmpereOne 5964 - Tower PC Active RoHS

item no.: A 2867

available soon
-- €
send inquiry for this product
  • Description
  • Specs
  • Downloads
  • Related Products

  • LGA 5964 / For AmpereOne

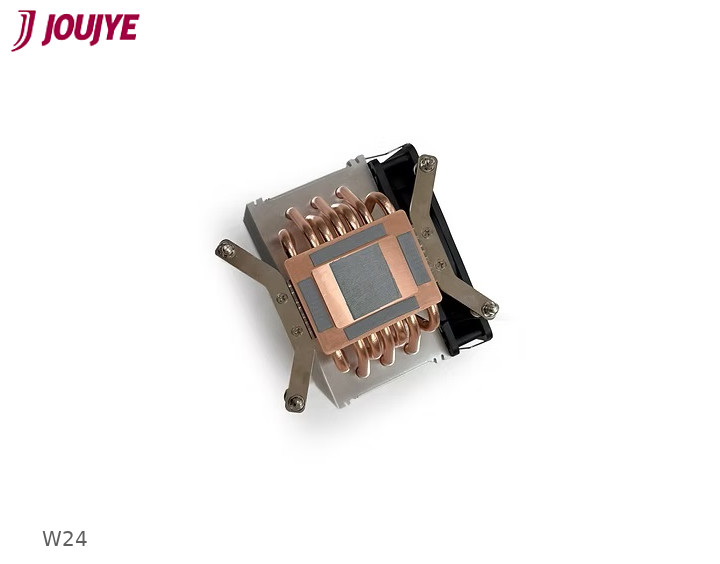

  • Copper Base + Direct Contact Heat Pipe + Aluminum Fins
  • Up to TDP 400W at 41°C ambient temperature
  • Disclaimer: All product specifications and product images are subject to change without notice

    • SPECIFICATIONS:
    Application
    CPU Socket LGA 5964
    CPU Recommend for AmpereOne ®
    Solution Active Cooler for Tower PC
    Technical Data
    Overall dimension 125.0 x 120.0 x 158.0 mm
    Weight 994g
    Heat Sink
    Material Copper Base + Direct Contact Heat Pipe + Aluminum Fins
    Screw Type M4
    Installation torque 12-14 lb-in
    Fan
    Fan Dimension 120 x 120 x 25 mm
    Speed At Duty Cycle 0~20%: 600 ± 200 RPM
    At Duty Cycle 50%: 1650 ± 200 RPM
    At Duty Cycle 100%: 2400 ± 10% RPM
    Bearing 2 Ball Bearing
    Rated Voltage 12V
    Power At Duty Cycle 0~20%: 0.6W
    At Duty Cycle 50%: 1.92W
    At Duty Cycle 100%: 5.4W
    Air Flow At Duty Cycle 0~20%: 21.98 CFM
    At Duty Cycle 50%: 60.45 CFM
    At Duty Cycle 100%: 87.93 CFM
    Noise Level At Duty Cycle 0~20%: 16 dBA
    At Duty Cycle 50%: 30.25 dBA
    At Duty Cycle 100%: 38.89 dBA
    Static Pressure At Duty Cycle 0~20%: 0.25 mm-H2O
    At Duty Cycle 50%: 1.91 mm-H2O
    At Duty Cycle 100%: 4.05 mm-H2O
    Lead Wire Pin Out Pin1-Black (-)
    Pin2-Black (+)
    Pin3-Black (Tachometer/Signal output)
    Pin4-Black (PWM)
    Thermal grease Shin-Etsu (or equivalent) Pre-printed
    *All product specifications and product images are subject to change without notice.
