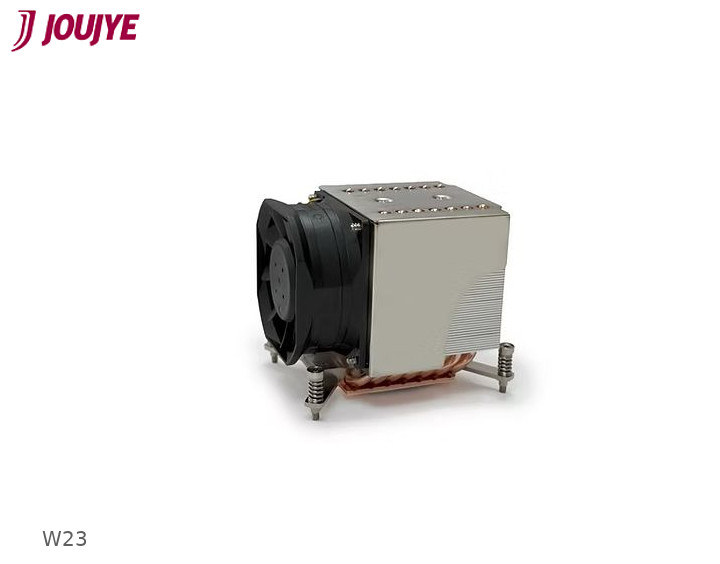

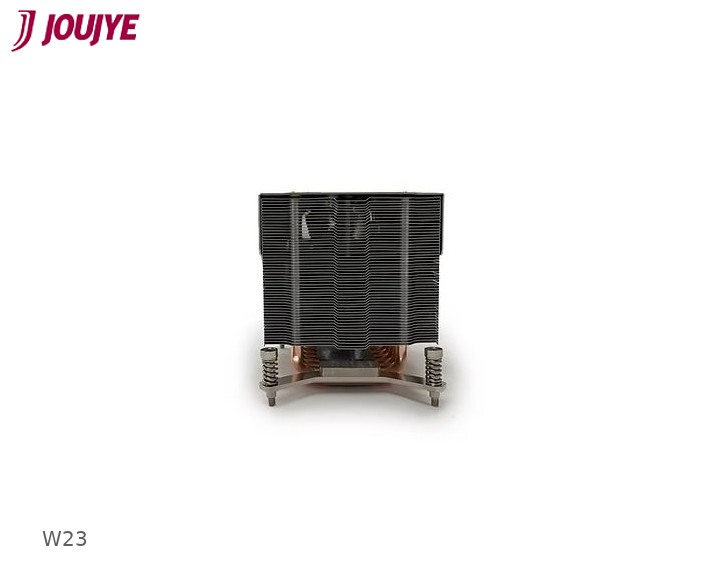

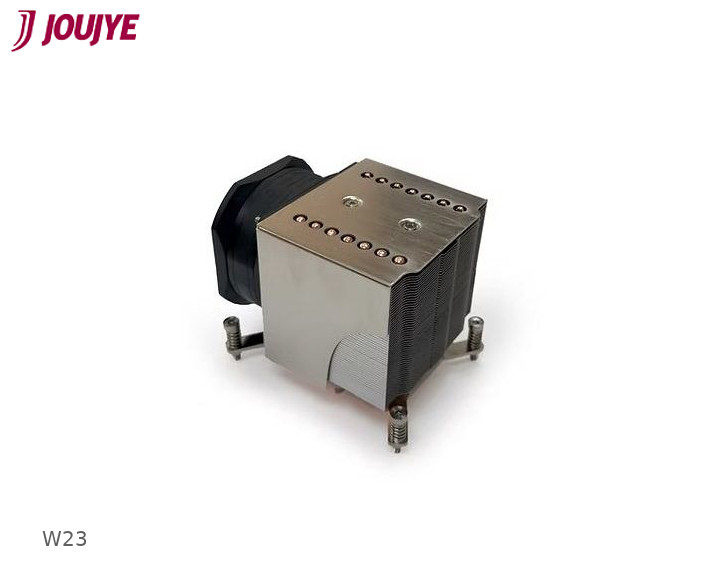

Cooler W23 AmpereOne 5964 - 3U Active RoHS

item no.: A 2866

available soon
-- €
send inquiry for this product
  • Description
  • Specs
  • Downloads
  • Related Products

  • LGA 5964 / For AmpereOne
  • Aluminum + Copper Heatsink Base + Heatpipe + Aluminum Fins
  • Up to TDP 400W at 41°C ambient temperature
  • Disclaimer: All product specifications and product images are subject to change without notice

    • SPECIFICATIONS:
    Application
    CPU Socket LGA 5964
    CPU Recommend for AmpereOne ®
    Solution Active Cooler for 3U Server and up
    Technical Data
    Overall dimension 126.8 x 93.5 x 105 mm
    Weight TBD
    Heat Sink

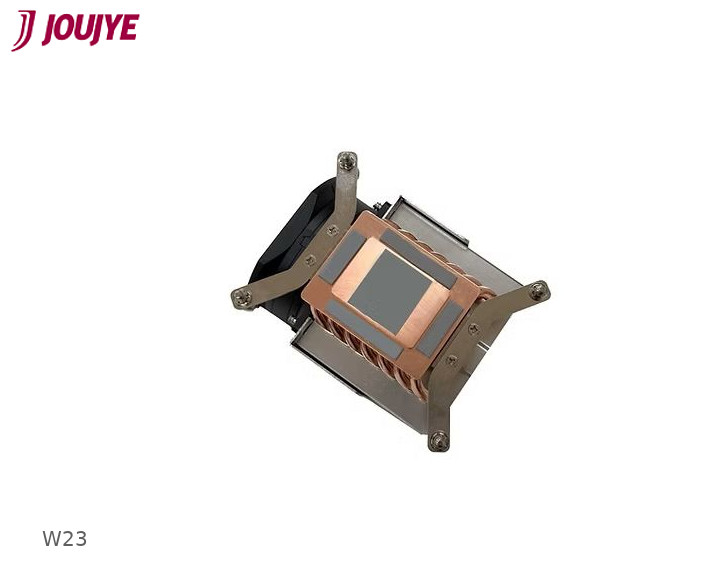

    Material Aluminum + Copper Heatsink Base + Heatpipe + Aluminum Fins
    Screw Type M4

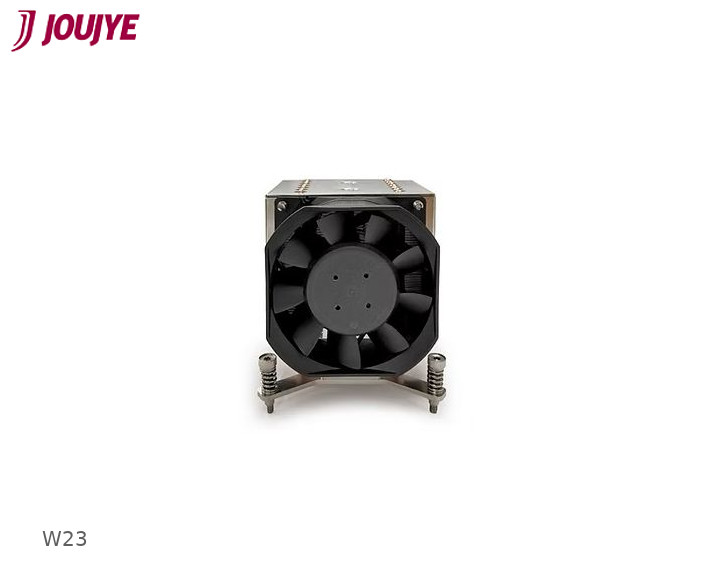

    Fan
    Fan Dimension 80 x 80 x 38 mm
    Speed At Duty Cycle 0~20%: 2400 ± 200 RPM
    At Duty Cycle 50%: 4800 ± 10% RPM
    At Duty Cycle 100%: 8000 ± 10% RPM
    Bearing 2 Ball Bearing
    Rated Voltage 12V
    Power At Duty Cycle 0~20%: 1.2W
    At Duty Cycle 50%: 5.52W
    At Duty Cycle 100%: 24.72W
    Air Flow At Duty Cycle 0~20%: 32.52 CFM
    At Duty Cycle 50%: 67.24 CFM
    At Duty Cycle 100%: 115.61 CFM
    Noise Level At Duty Cycle 0~20%: 25.63 dBA
    At Duty Cycle 50%: 47.85 dBA
    At Duty Cycle 100%: 64.4 dBA
    Static Pressure At Duty Cycle 0~20%: 3.45 mm-H2O
    At Duty Cycle 50%: 13.6 mm-H2O
    At Duty Cycle 100%: 38.3 mm-H2O
    Lead Wire Pin Out Pin1-Black (-)
    Pin2-Yellow (+)
    Pin3-Green (Tachometer/Signal output)
    Pin4-Blue (PWM)
    Thermal grease Shin-Etsu (or equivalent) Pre-printed
    *All product specifications and product images are subject to change without notice.
