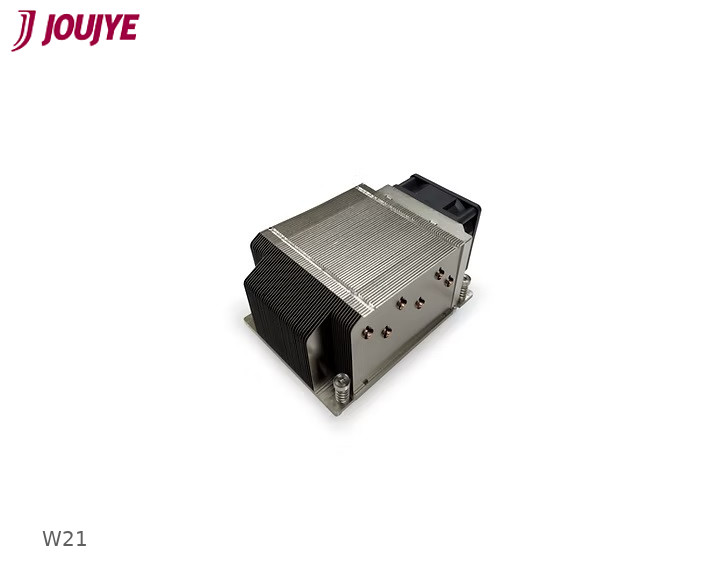

Cooler W21 AmpereOne 5964 - 2U Active RoHS

item no.: A 2864

available soon
-- €
send inquiry for this product
  • Description
  • Specs
  • Downloads
  • Related Products

  • LGA 5964 / For AmpereOne

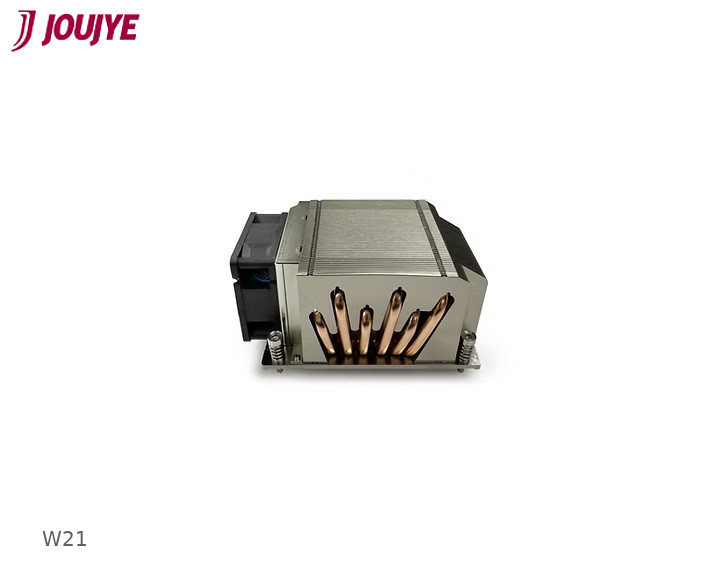

  • Aluminum + Copper Heatsink Base + Heatpipe + Aluminum Fins
  • Up to TDP 400W at 41°C ambient temperature
  • The copper base enables fast and efficient heat transfer, while direct-contact heat pipes provide effective heat dissipation. Together with precisely engineered aluminium fins, the cooler delivers optimized thermal distribution, ensuring maximum performance and reliable system stability under demanding workloads.
  • Disclaimer: All product specifications and product images are subject to change without notice

    • SPECIFICATIONS:
    Application
    CPU Socket LGA 5964
    CPU Recommend for AmpereOne ®
    Solution Active Cooler for 2U Server and up
    Technical Data
    Overall dimension 144.1 X 93.0 X 70.6 mm
    Weight 744g

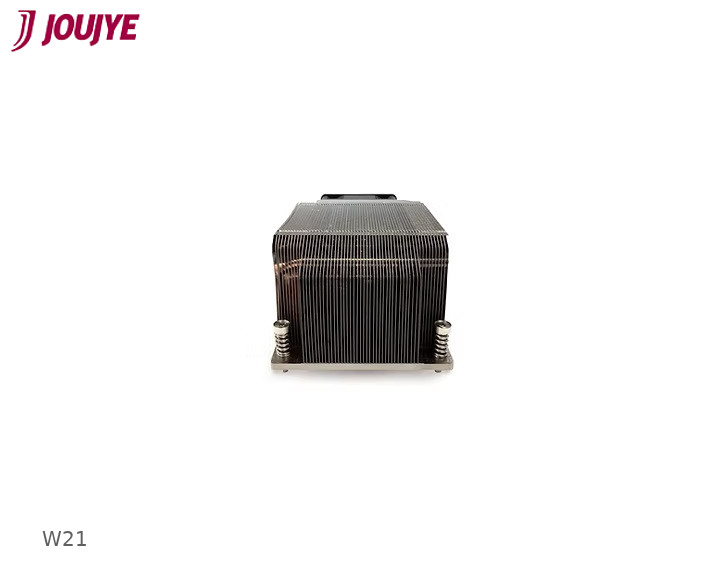

    Heat Sink
    Material Aluminum + Copper Heatsink Base + Heatpipe + Aluminum Fins

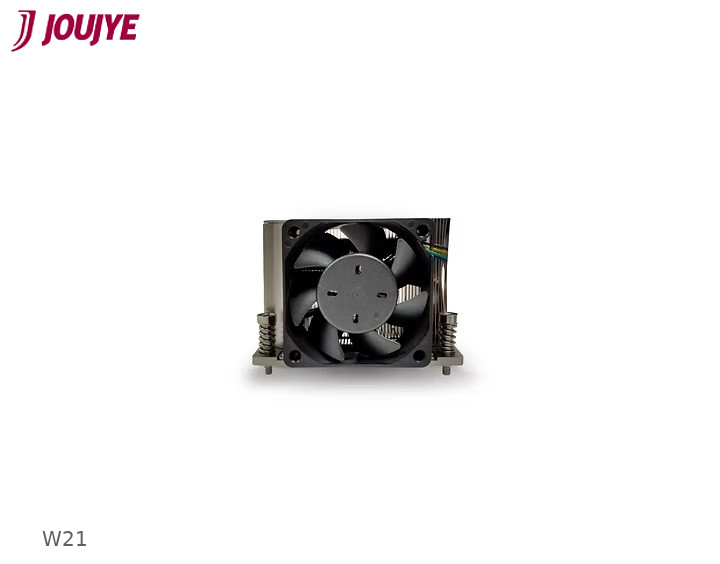

    Fan
    Fan Dimension 60 x 60 x 25 mm
    Speed At Duty Cycle 0~20%: 2300 ± 10% RPM
    At Duty Cycle 50%: 5400 ± 10% RPM
    At Duty Cycle 100%: 11000 ± 10% RPM
    Bearing 2 Ball Bearing
    Rated Voltage 12V
    Power At Duty Cycle 0~20%: 0.84W
    At Duty Cycle 50%: 2.76W
    At Duty Cycle 100%: 18W
    Air Flow At Duty Cycle 0~20%: 11.91 CFM
    At Duty Cycle 50%: 28.38 CFM
    At Duty Cycle 100%: 58.31 CFM
    Noise Level At Duty Cycle 0~20%: 25.8 dBA
    At Duty Cycle 50%: 44.4 dBA
    At Duty Cycle 100%: 59.8 dBA
    Static Pressure At Duty Cycle 0~20%: 1.48 mm-H2O
    At Duty Cycle 50%: 7.54 mm-H2O
    At Duty Cycle 100%: 28.8 mm-H2O
    Lead Wire Pin Out Pin1-Black (-)
    Pin2-Yellow (+)
    Pin3-Green (Tachometer/Signal output)
    Pin4-Blue (PWM)

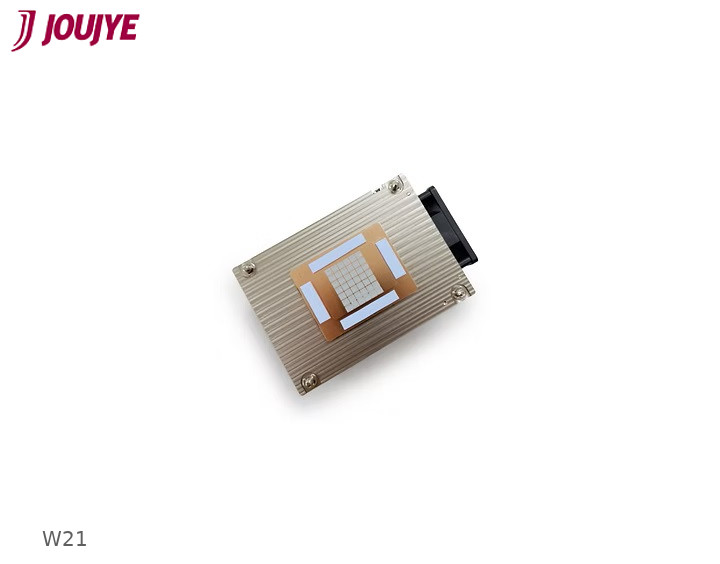

    Thermal grease Shin-Etsu (or equivalent) Pre-printed
    *All product specifications and product images are subject to change without notice.
