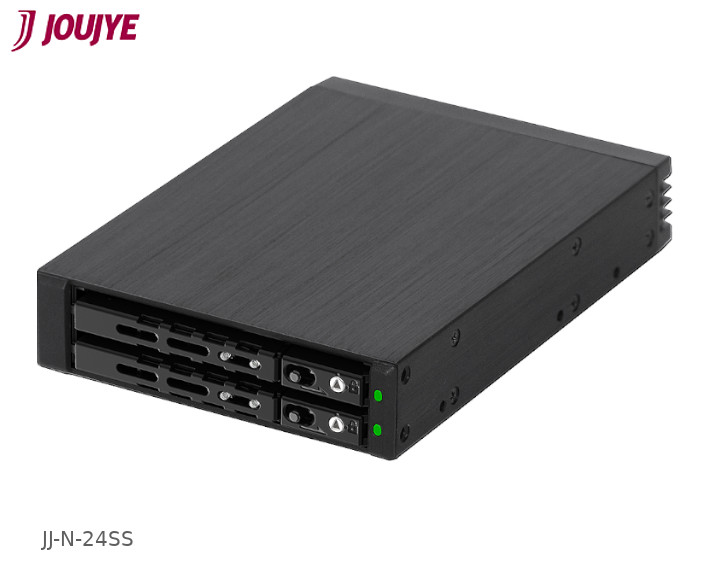

JJ-N-24SS 12G SATA/SAS for 2x2.5" SSD/HDD Backplane Cage

item no.: A 2862

Not in stock

-- €

2 x 2.5" HDD (SSD*) hot-swap aluminum backplane cage with keylock and T-131A tray

Enables 2.5" SATA/SAS HDD/SSD* to be fit in 1 x 3.5" standard form factor drive bay

Reliable metal key lock to safeguard the HDD/SSD

Support up to 9.5mm height

Support SATA I,II, III and SAS I,II, III (12Gbps) HDD/SSD

Cableless connection

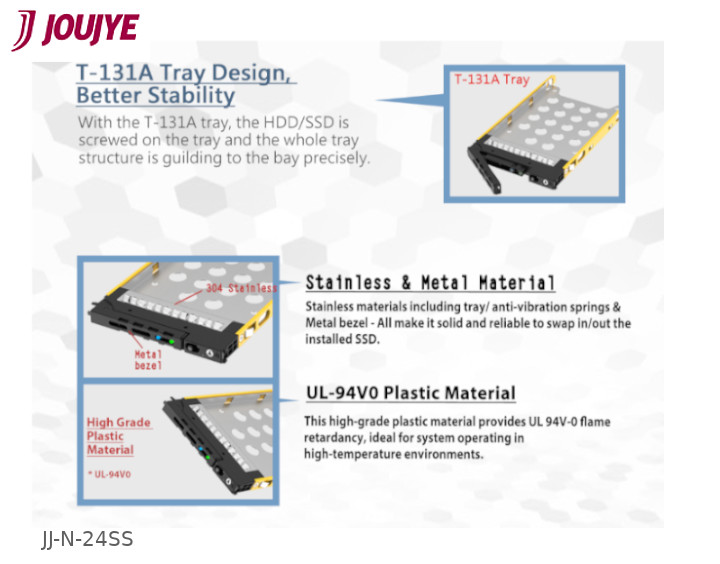

Aluminum tray/anti-vibration springs and metal bezel

High grade plastic UL-94 V-0 flame retardancy

An ideal solution for any floppy-swap-bay for high-end applications, SoHo and consumers.

*SSD Solid State Drive (flash based drive)

SPECIFICATIONS:

Model Name	JJ-N-24SS

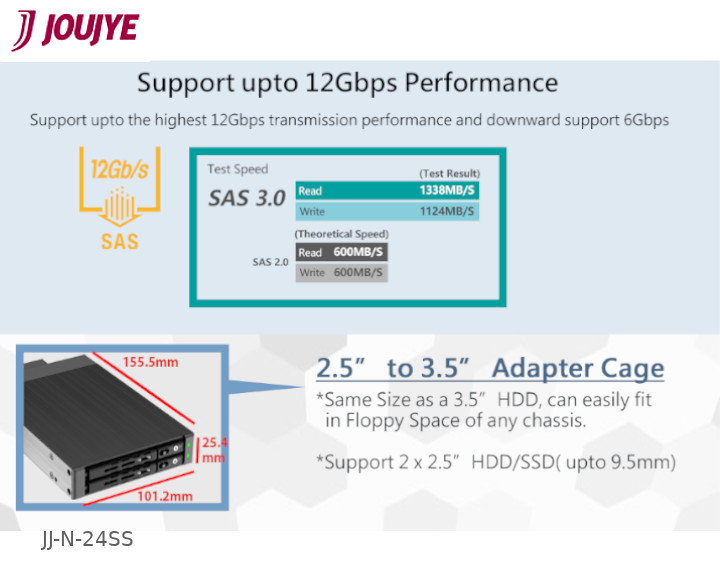

Form Factor	1 x 3.5" Bay size for 2 x 2.5" HDD/SSD (upto 9.5mm)
Support HDD Type	2.5" SATA I, II, III / SAS I, II, III (12Gbps) HDD & SSD

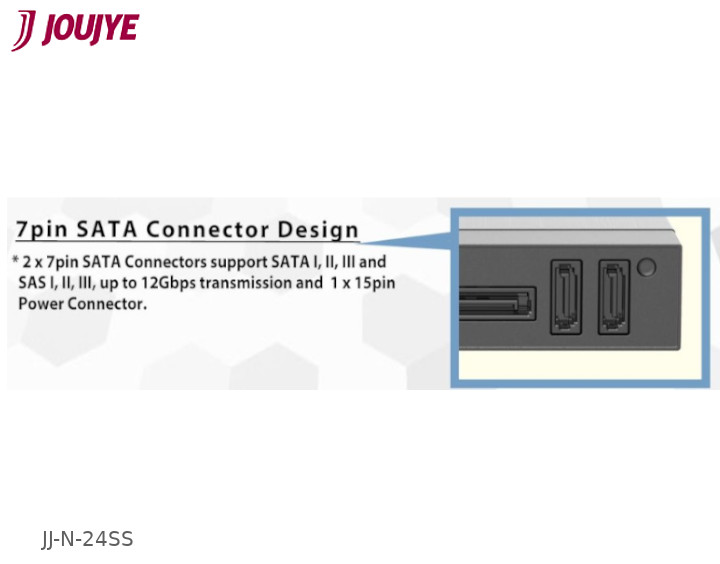

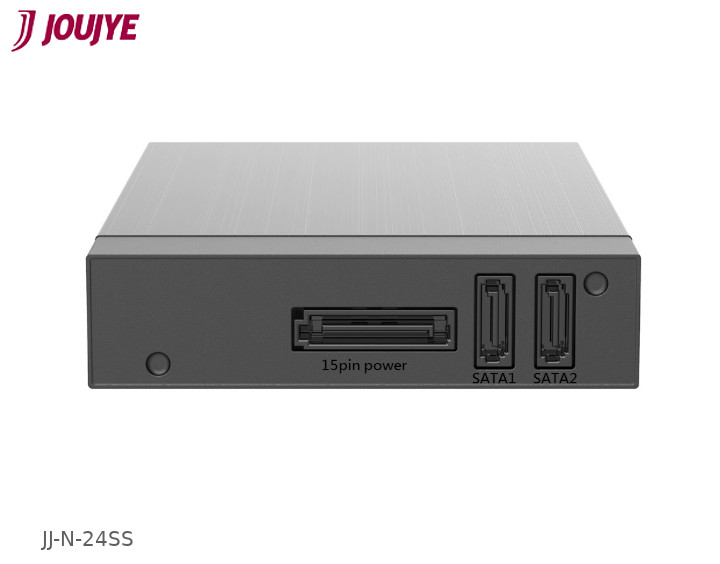

Interface	7pin SATA connector x 2 and 15pin SATA power connector x 1

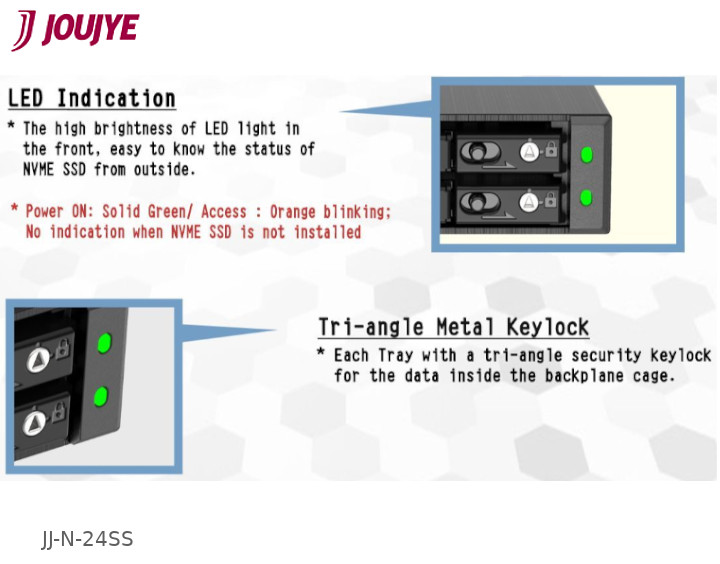

LED Indication	Power on: Solid Green / HDD Access: Orange blinking
Security	Tri-angle Key Lock
Material	Aluminum tray/anti-vibration springs and metal bezel High grade plastic UL-94 V-0 flame retardancy
Dimension	155(L) x 101.2(W) x 25.4(H) mm
Weight	0.39kg
