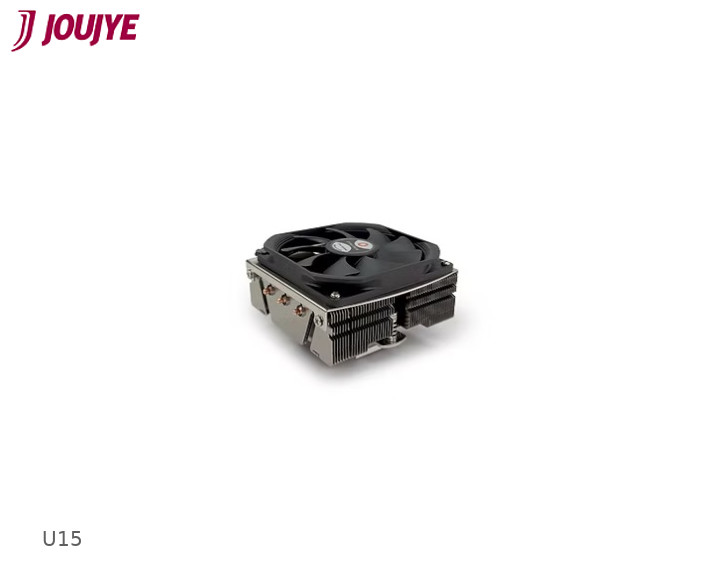

Cooler U15 Multi Socket 1851/1700/1200/115x/AM5/AM4 2U

item no.: A 2861

Product in stock

-- €

Activ

Multi Socket Intel LGA 1851/1700/1200/115x/ AMD AM5/AM4

For 2U

Aluminum Base & Aluminum Fins with Heat Pipe

Intel up to 145W TDP

AMD up to 146W TDP

Fan with PWM Function

Screw Type

Disclaimer: All product specifications and product images are subject to change without notice

SPECIFICATIONS:

Application
CPU Socket	Multi Socket Intel LGA 1851/1700/1200/115x AMD AM5/AM4
CPU	Recommend for Intel® Socket LGA 1851/1700/1200/115X and AMD® Socket AM4/AM5 Processor
Solution	Active Cooler for 2U
Technical Data
Overall dimension	101.3 x 101 x 62.6 mm
Weight	700g
Heat Sink
Material	Aluminum Base & Aluminum Fins with Heat Pipe
Fan
Fan Dimension	Ø 92.0 x 92.0 x 12.0 mm
Speed	At Duty Cycle 0~20%: 800±200 RPM At Duty Cycle 50%: 1900±10% RPM At Duty Cycle 100%: 3200±10% RPM
Bearing	2 Ball Bearing
Rated Voltage	12V
Power	At Duty Cycle 0~20%: 0.2W At Duty Cycle 50%: 0.5W At Duty Cycle 100%: 1.6W
Air Flow	At Duty Cycle 0~20%: 9.88 CFM At Duty Cycle 50%: 21.38 CFM At Duty Cycle 100%: 35.78 CFM
Noise Level	At Duty Cycle 0~20%: 22.3 dBA At Duty Cycle 50%: 26.1 dBA At Duty Cycle 100%: 35.2 dBA
Air Pressure	At Duty Cycle 0~20%: 0.28 mm-H2O At Duty Cycle 50%: 1.22 mm-H2O At Duty Cycle 100%: 3.21 mm-H2O
Lead Wire Pin Out	Pin#1-Black (-) Pin#2-Black (+) Pin#3-Black(Tachometer/Signal output) Pin#4-Black (PWM)
Life – Continuous operating under normal temperature (40°C or 104°F)	70,000 Hours
