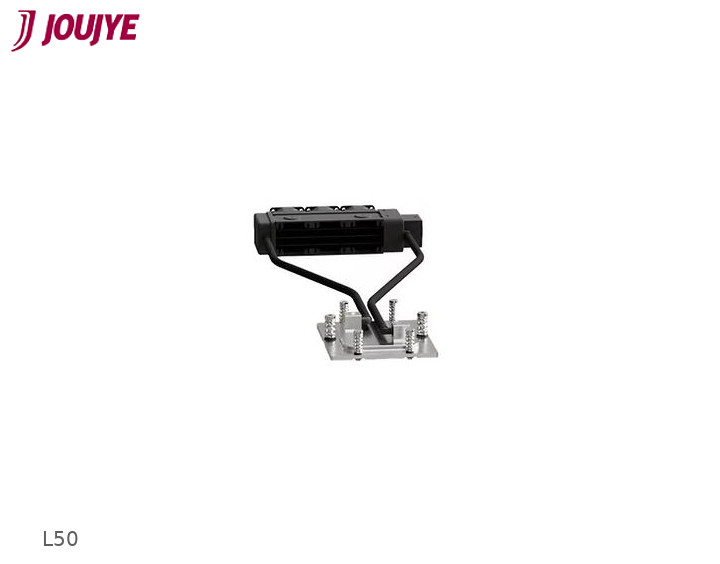

Cooler L50 Water Cooling AMD Socket SP7 1U

item no.: A 2856

Not in stock

-- €

For AMD SP7

Support CPU TDP up to 560W @30°C Ambient

For 1U Server

70,000 hours continuous operating under normal tempernature (40°C/104°F)

SPECIFICATIONS:

Application
Socket	Liquid Cooler Recommended for AMD® Processors AMD Socket SP7
Solution	1U Server
CPU	AMD
Technical Data
Fan Dimension	40 x 40 x 28 mm
Radiator Dimension	188 x 74 x 40 mm
Cold Plate Dimension	120 x 103.6 x 24 mm
Cold Plate Material	Cold Plate Module with Copper Base
Installation Torque	12.5–15.0 kg-cm (10.8–13.0 in-lbf)
Screw Type	M3.5/M4
Pump Power Consumption	3W
Water Pump	Stand-alone Water Pump with Powerful Flow Rate 1.7 Liter Per Minute
Speed	At Duty Cycle 20%: 3300 ± 10%RPM At Duty Cycle 50%: 15000 ±10%RPM At Duty Cycle 100%: 26000 ±10%RPM
Rated Voltage	12V
Bearing	2 Ball Bearing
Maximum Air Flow	At Duty Cycle 20%: 4.74 CFM At Duty Cycle 50%: 21.53 CFM At Duty Cycle 100%: 37.32 CFM
Noise Level	At Duty Cycle 20%: 19.35 dBA At Duty Cycle 50%: 52.23 dBA At Duty Cycle 100%: 64.17 dBA

Air Pressure
Air Pressure	At Duty Cycle 0~20%: 1.612 mm-H2O At Duty Cycle 50%: 33.30 mm-H2O At Duty Cycle 100%: 100.06 mm-H2O
CPU power
Fan power consumption	At Duty Cycle 0~20%: 0.72W At Duty Cycle 50%: 6W At Duty Cycle 100%: 22.8W
Lead Wire Pin Out
Lead Wire Pin Out	Pin1- (-) Pin2- (+) Pin3- (Tachometer/Signal Output) Pin4- (PWM)
Continuous operating under normal temperature (40°C/104°F)	70,000 Hours
Maximum power	560W @30° C Ambient
