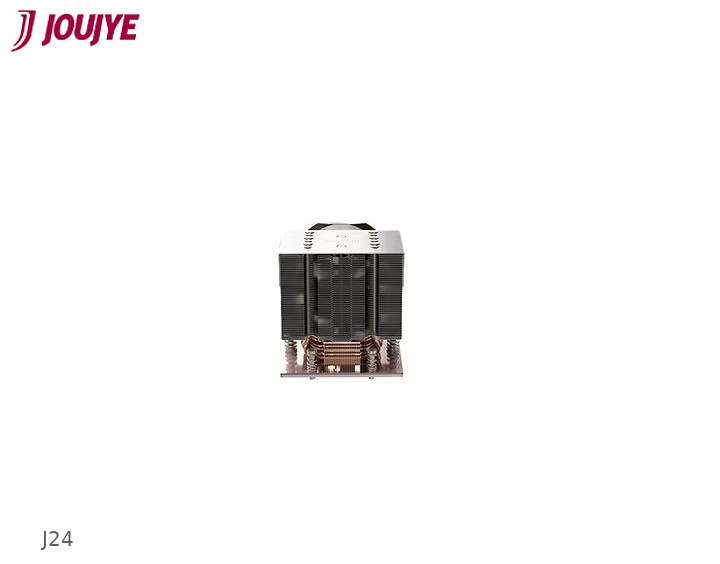

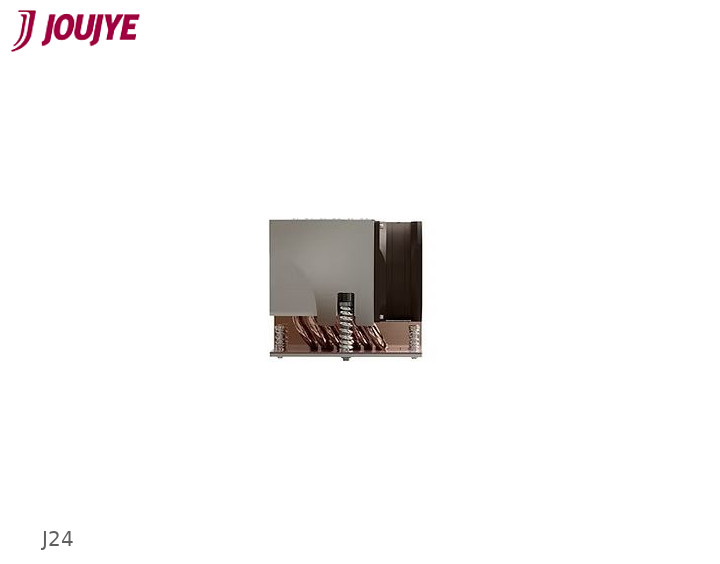

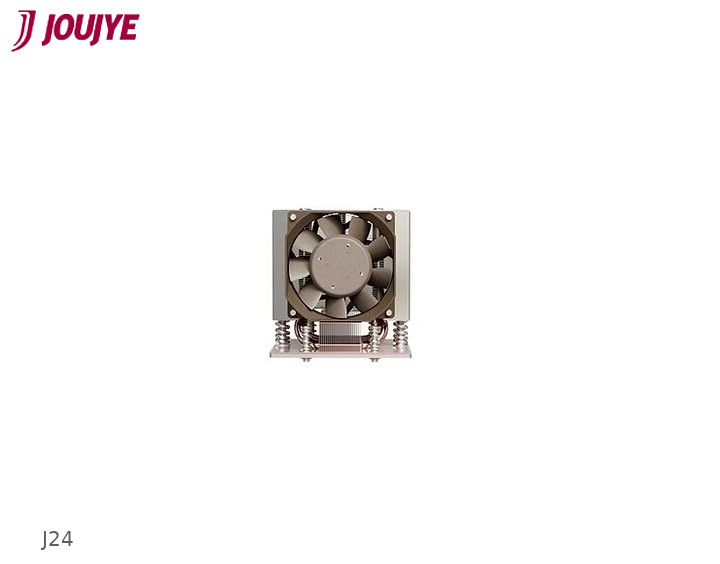

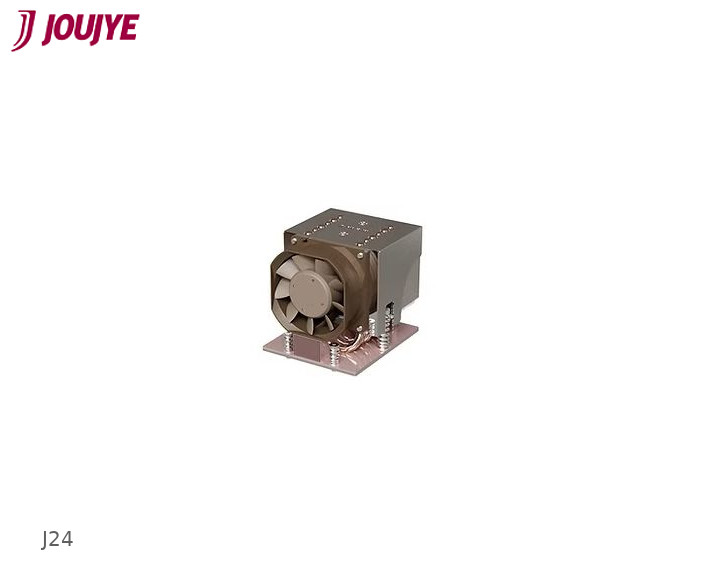

Cooler J24 AMD SP7 - 3U Active RoHS

item no.: A 2855

Not in stock

-- €

AMD® SP7

For 3U Server and Up

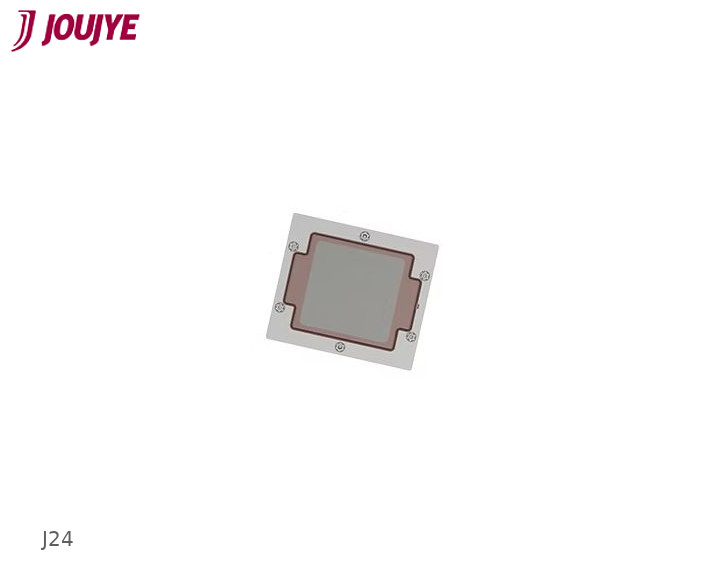

Aluminum Fin + Heat pipes + Copper Heat Spreader Embedded Vapor Chamber Heatsink Base

TDP 600W

Disclaimer: All product specifications and product images are subject to change without notice

SPECIFICATIONS:

Application
CPU	AMD®
Socket	SP7
Technical Data
Overall dimension	120.0 x 103.6 x 110.0 mm
Weight	1080g
Screw Type	M3.5/M4
Installation torque	12.5–15.0 kg-cm (10.8–13.0 in-lbf)
Heat Sink
Material	Aluminum Fin + Heat pipes + Copper Heat Spreader Embedded Vapor Chamber Heatsink Base
Fan
Fan Dimension	80 x 80 x 38 mm
Fan Type	Double Ball Bearing with PWM function
Rated Voltage	12V
Speed	At Duty Cycle 0~20% : 2400 ±200 RPM At Duty Cycle 50% : 4800 ±10% RPM At Duty Cycle 100% : 8000 ±10% RPM
Power	At Duty Cycle 0~20% : 1.2W At Duty Cycle 50% : 5.52W At Duty Cycle 100% : 24.72W
Air Flow	At Duty Cycle 0~20% : 32.52 CFM At Duty Cycle 50% : 67.24 CFM At Duty Cycle 100% : 115.61 CFM
Noise Level	At Duty Cycle 0~20% : 25.63 dBA At Duty Cycle 50% : 47.85 dBA At Duty Cycle 100% : 64.40 dBA
Air Pressure	At Duty Cycle 0~20% : 3.45 mm-H2O At Duty Cycle 50% : 13.6 mm-H2O At Duty Cycle 100% : 38.3 mm-H2
Lead Wire Pin Out	Pin#1- Black(-) Pin#2- Yellow(+) Pin#3- Green(Tachometer/ Signal Output) Pin#4- Blue (PWM)
