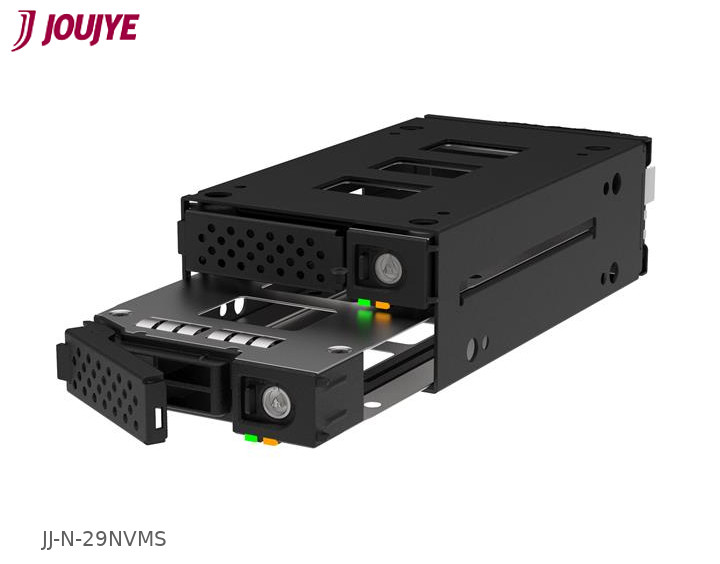

JJ-N-29NVMS15 SlimSAS 4i (SFF-8654) NVMe SSD

item no.: A 2852

Not in stock

-- €

U.2/U.3(64Gbps)

For 5.25" Drive bay width size

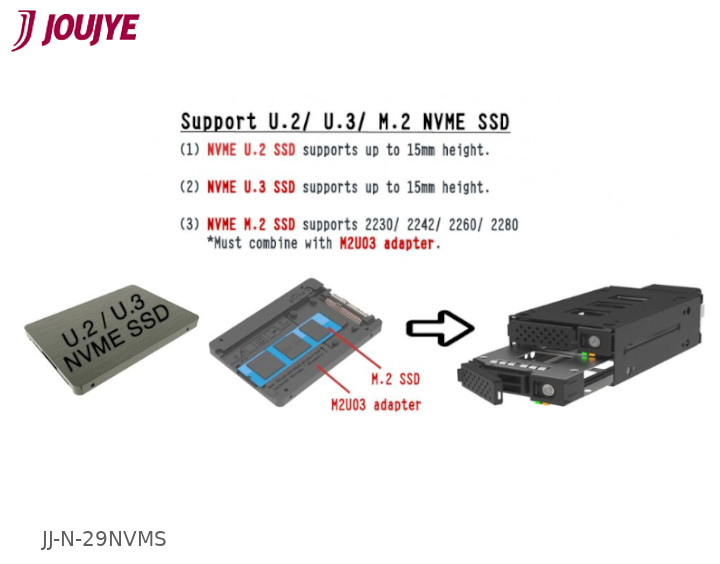

For 2 x 2.5” NVMe SSD U.2/U.3 (dual mode) up to 15mm height

For 2 x M.2 (with M2U03 adapter) 2230/ 2242/ 2260/ 2280

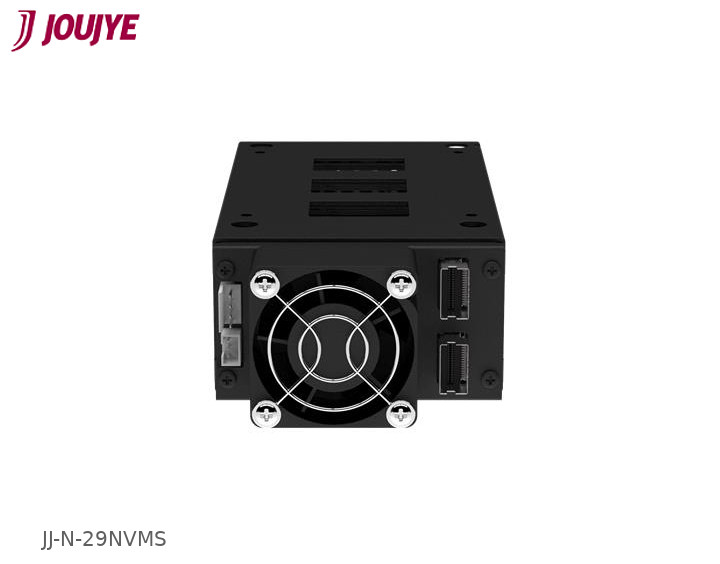

SlimSAS 4i SFF-8654 (9402) connector x 2

Mini 4pin Power Connector x 1

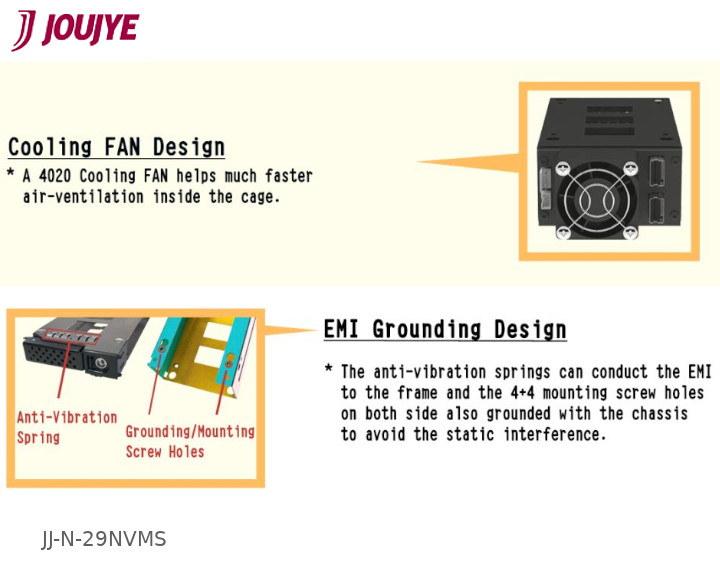

1 x 4020 Blower Fan

Metal key lock design

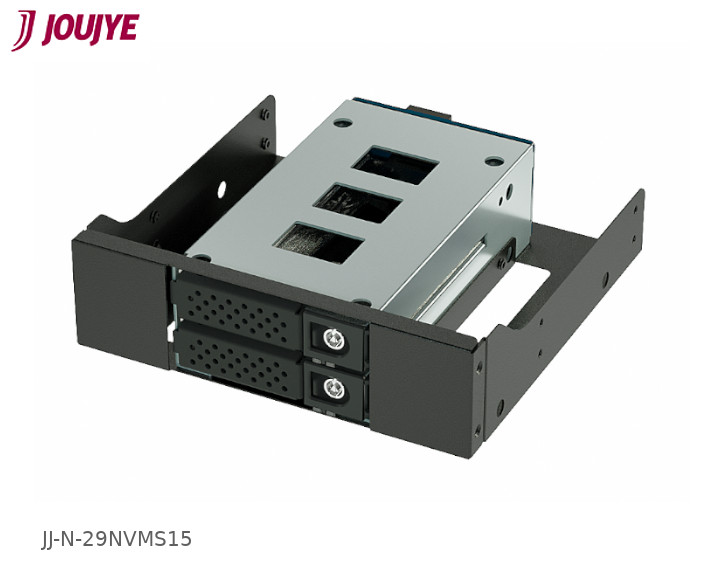

Including 5.25" bracket mounting kit

SPECIFICATIONS:

Model Name	JJ-N-29NVMS15
Form Factor	1 x 5.25" Drive bay width size
Support HDD types	2 x 2.5” NVMe SSD U.2/U.3 (with Dual Mode) M.2 (with M2U03 adapter) 2230/2242/2260/2280 Supported height up to 15mm PCIe 3.0/4.0 - 32/64Gbps
Interface	SlimSAS (SFF-8654) Connector x 2 Mini 4pin Power Connector x 1
Security Design	Triangle key lock
Material	Metal frame & handle
LED Indication	Power ON: Green HDD Access: Orange blinking
Fan	1 x 4020 Blower Fan
Colour	Black
Dimensions (LxWxH)[mm]	155.1 x 145 x 41.8 mm
Weight	0.57Kg
