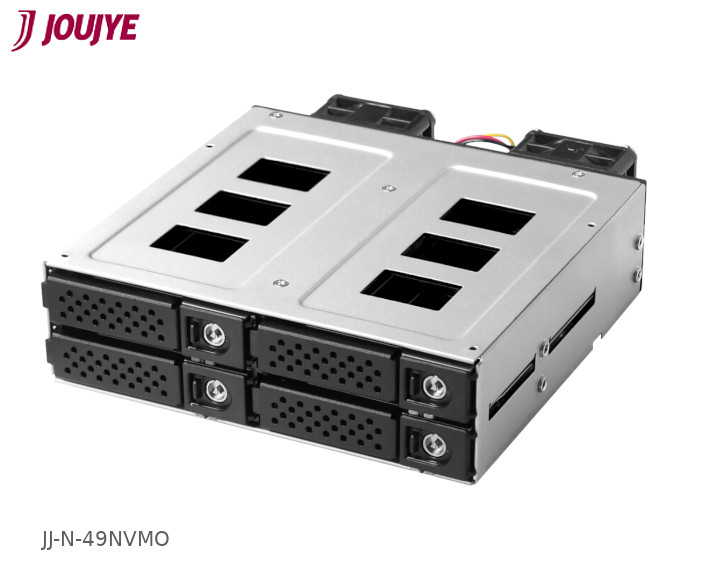

JJ-N-49NVMO for 4 x 2.5" NVMe U.2 SSD (OCuLink) SFF-8612

item no.: A 2849

Product in stock

-- €

Form Factor: 1 X 5.25" Drive Bay

For 4 x 2.5" NVMe U.2 HDD/SSD upto 15mm

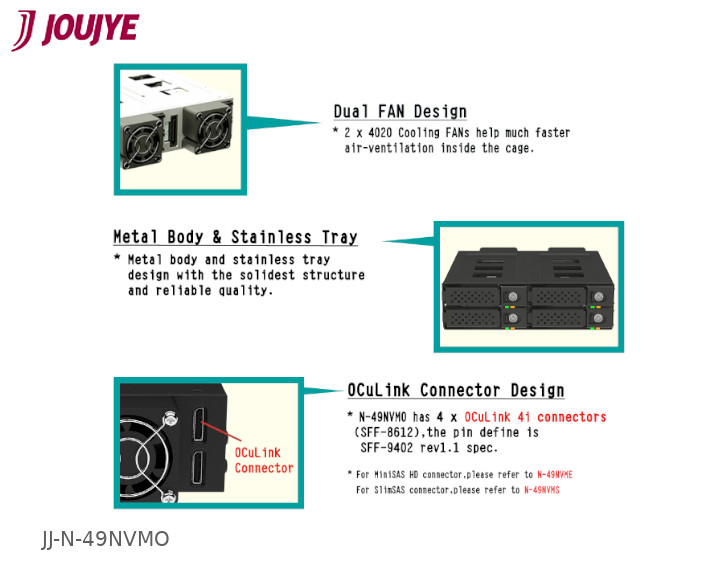

OCuLink SFF-8612 Connector x 4

15pin power connector x 2

For SSD Type U.2 / U.3 (with Dual Mode)

M.2 (with M2U03 adapter) 2230 / 2242 / 2260 / 2280

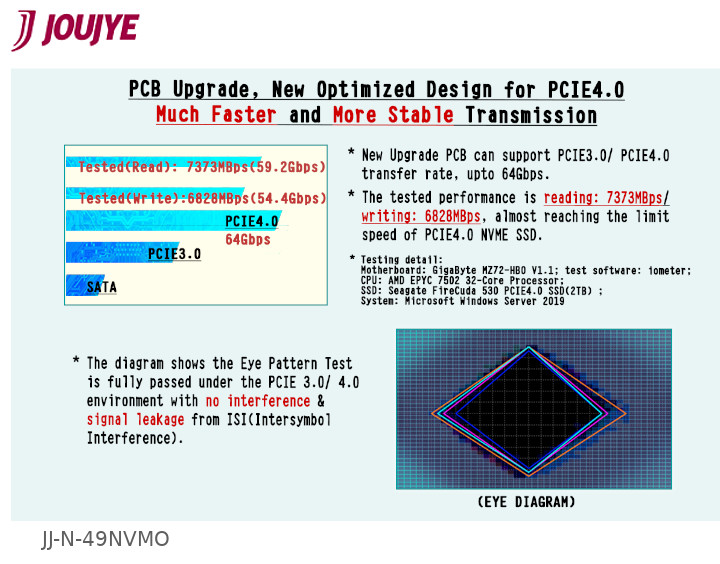

Transfer Rate PCIe3.0/4.0 32/64Gbps

Cableless HDD connection

Incl. 40 x 40 x 20mm rear fans x 2

Metal keylock design

Metal frame & stainless HDD Tray

Easy drives swap in / out

SPECIFICATIONS:

Model Name	JJ-N-49NVMO
Form Factor	1 x 5.25" Bay
Support HDD types	For 4 x 2.5" NVMe SSD (upto 15mm) U.2 / U.3 (with Dual Mode) M.2 (with M2U03 adapter) 2230/2242/2260/2280 PCIe 3.0/4.0 x4 32/64Gbps Supported HDD height 7mm upto 15mm
Interface	OCuLink (SFF-8612) Connector x 4 15pin power connector x 2
Security Design	With security metal key lock on each HDD/SSD tray
Material	Metal frame & Stainless HDD Tray
Specials	Each tray with anti-vibration springs

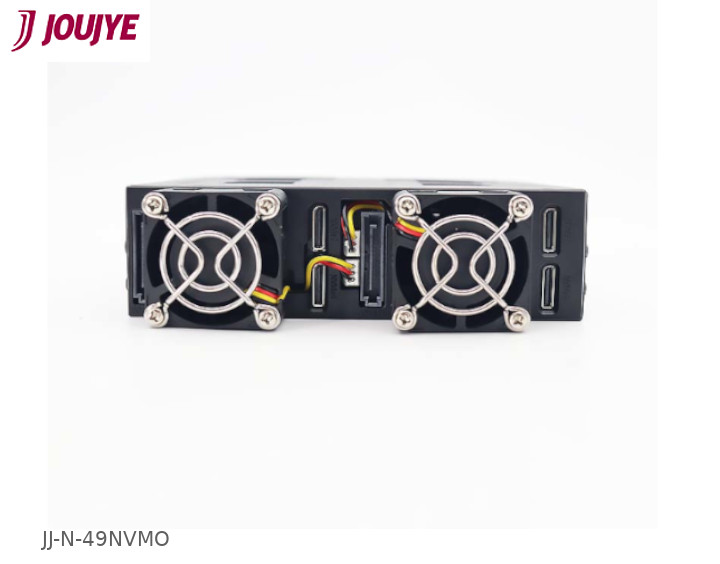

Cooling fan	40 x 40 x 20mm x 2

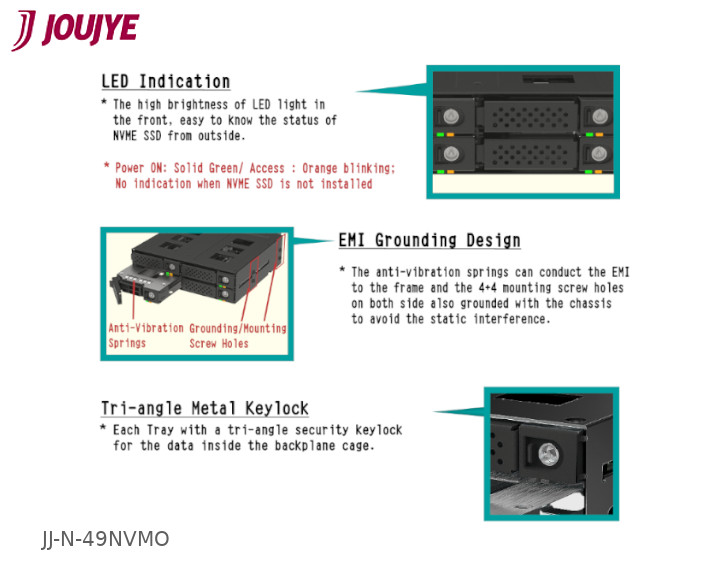

LED indication	Power ON: Green Accessing: Orange blinking
Data cable	Cableless connection (w/o cables)
Operating system	Windows/Linux/Mac
Dimensions [mm]	161.5(L) x 145.8(W) x 41.6(H)
Weight	0.65 Kg
