Product

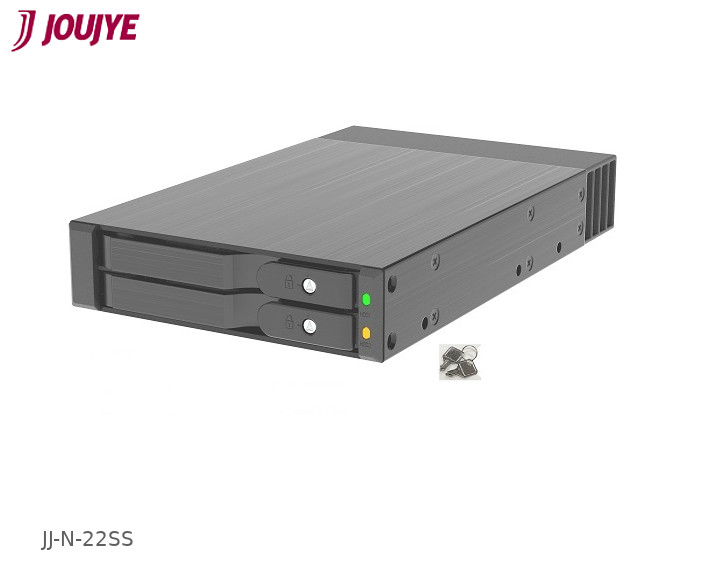

JJ-N-22SS 12G SATA/SAS for 2x2.5" SSD/HDD Mobile Rack black

item no.: A 2848

Not in stock
-- €
send inquiry for this product
  • Description
  • Specs
  • Downloads
  • Related Products

  • 2 x 2.5" HDD (SSD*) aluminum mobile rack with keylock

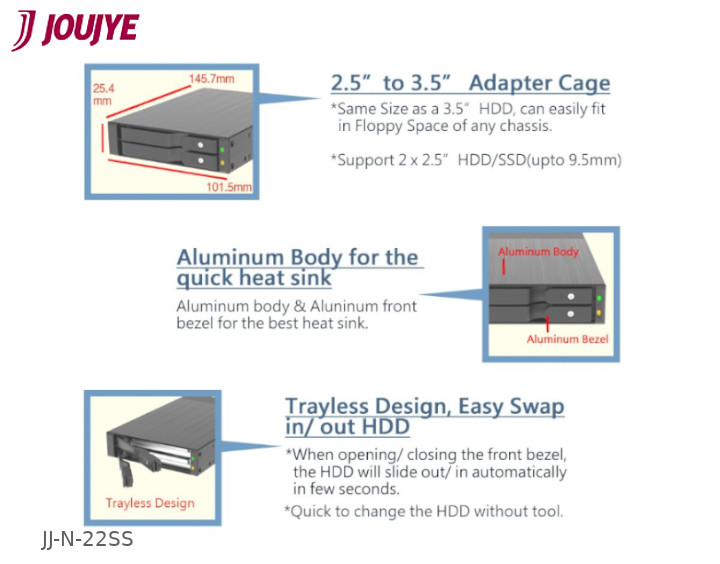

  • Enables 2.5" SATA/SAS HDD/SSD* to be fit in 1 x 3.5" standard form factor drive bay (floppy size space) in any desktop PC or rackmount chassis
  • Reliable metal key lock with additional latch to safeguard the HDD/SSD
  • Support up to 9.5mm height

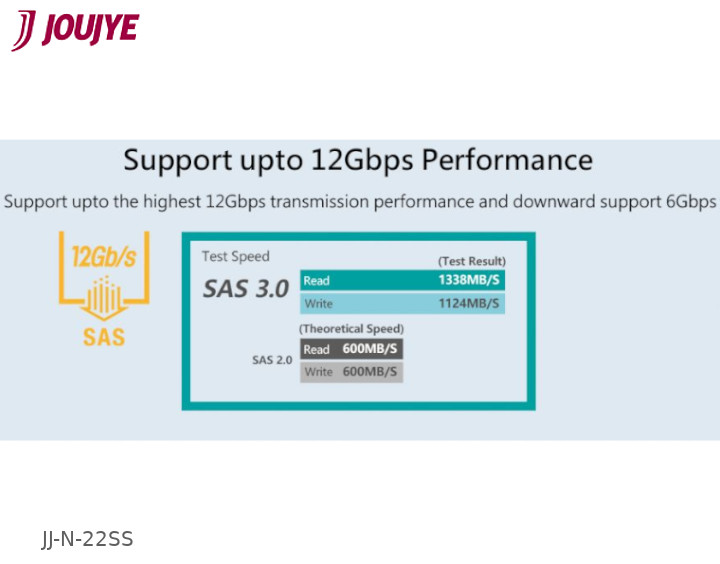

  • Support SATAI/II/III and SAS I/II/III (12Gbps) HDD/SSD
  • Cableless HDD with Golden Finger pin connection
  • Enhanced air flow design
  • Can be mounted in horizontal or vertikal way

    Trayless design to enhance the airflow and high quality aluminum body to maximize heat sinking. An ideal solution for any floppy-swap-bay for high-end applications, SoHo and consumers.

    *SSD Solid State Drive (flash based drive)

    • SPECIFICATIONS:
    Model Name JJ-N-22SS
    Form Factor 1 x 3.5" Bay size for 2 x 2.5" HDD/SSD (upto 9.5mm)
    Support HDD Type 2.5" SATA I, II, III / SAS I, II, III (12Gbps) HDD & SSD

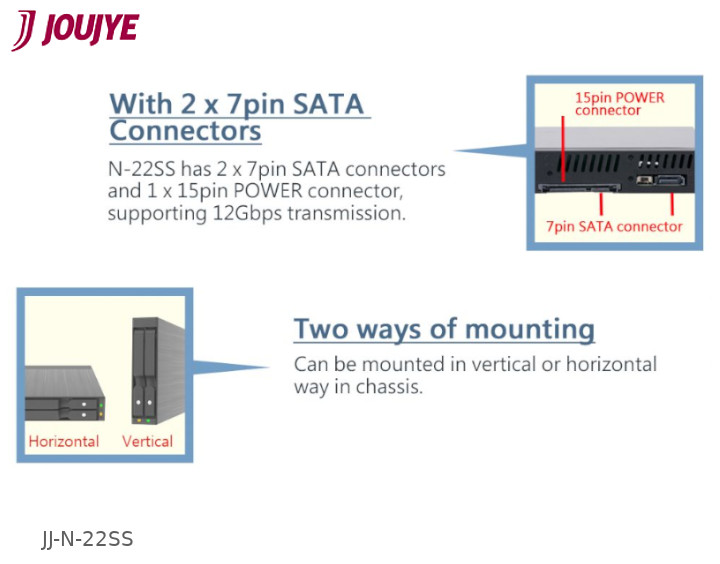

    Interface 7pin SATA connector x 2 and 15pin SATA power connector x 1

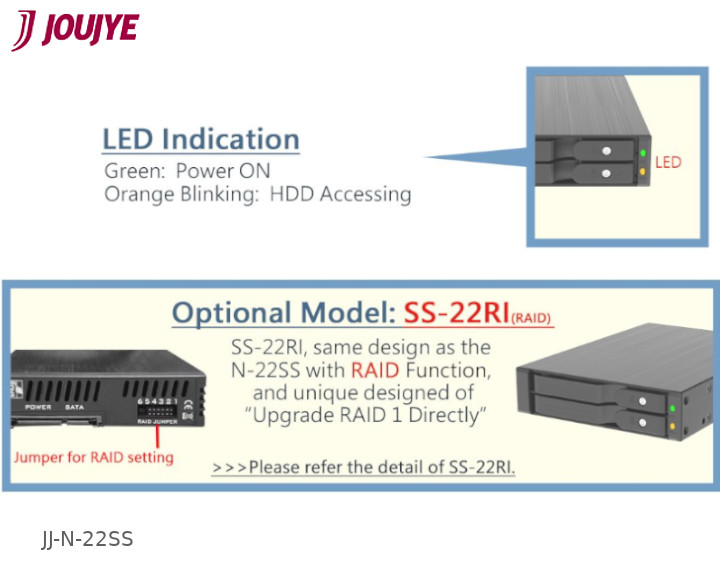

    LED Indication Power on: Green / HDD Access: Orange blinking
    Security Tri-angle Key Lock
    Material Aluminium
    Dimension 145.7(L) x 101.5(W) x 25.4(H) mm
    Weight 0.39kg
