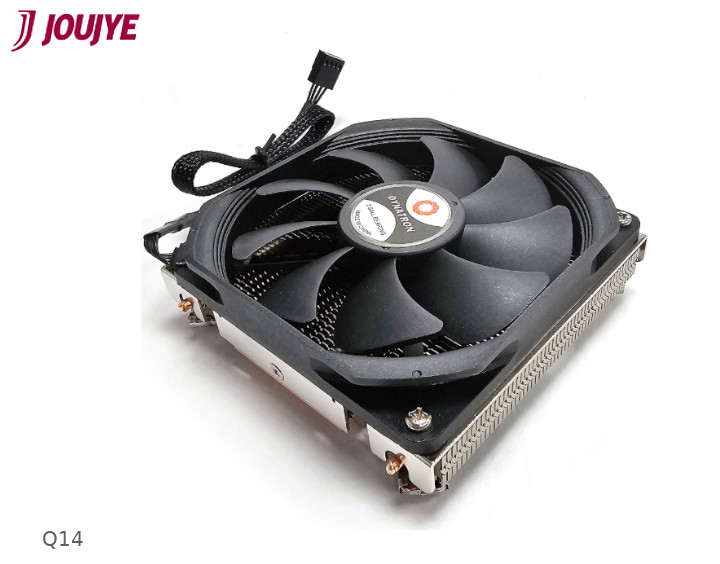

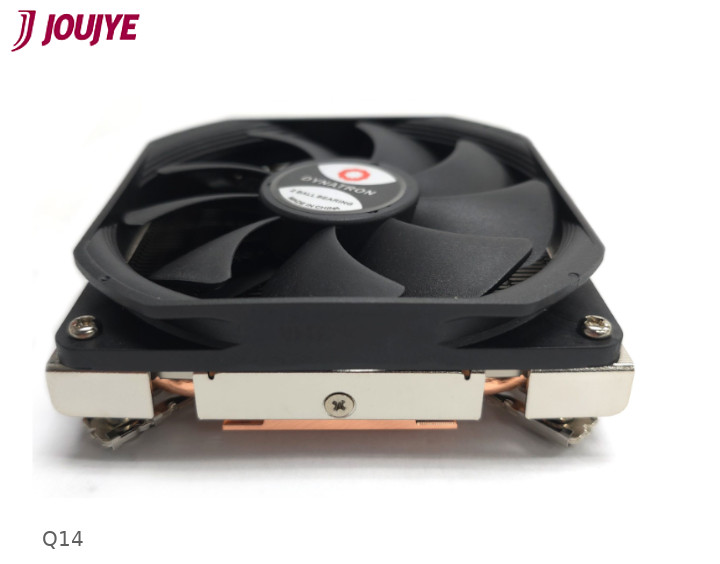

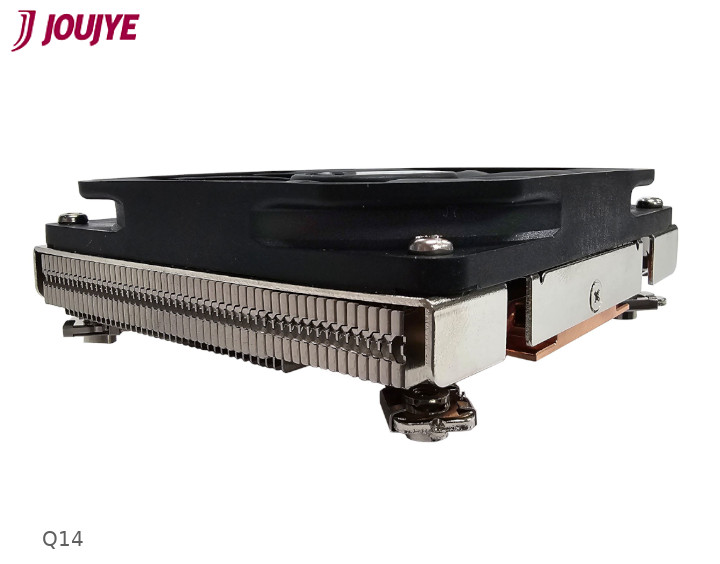

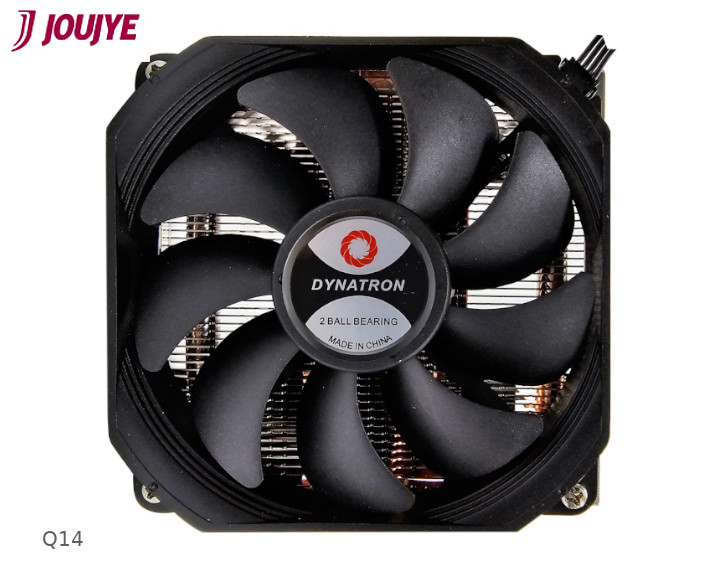

Cooler Q14 Intel 1700 - 1.5U Active

item no.: A 2846

Not in stock

-- €

Intel Socket LGA 1700 / 1851

For 1.5U & up

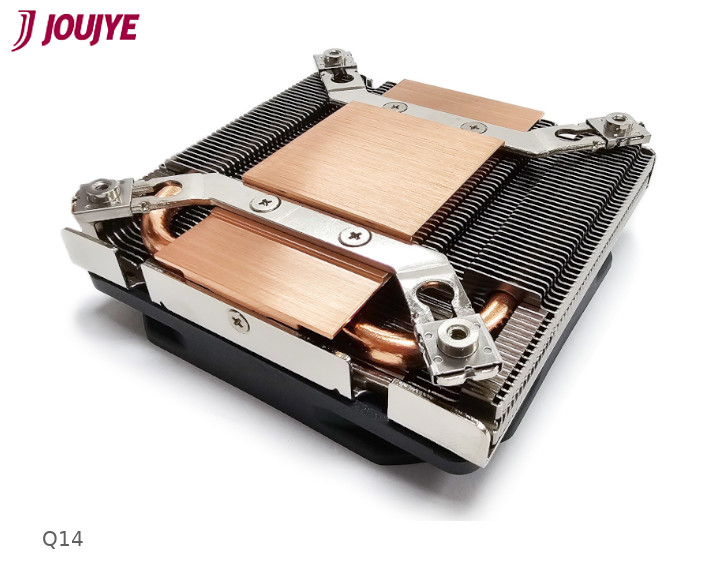

Copper Base & Aluminum Fins with Heat Pipe Embedded

Up to TDP 115W

Double Ball-Bearing fan with PWM Function

Disclaimer: All product specifications and product images are subject to change without notice

SPECIFICATIONS:

Application
CPU Socket	LGA 1700
CPU	Recommend for Intel® Socket LGA 1851/1700 Processors
Solution	Active Cooler for 1.5U Applications & up
Technical Data
Overall dimension	93.5 x 95.0 x 30.0 mm
Weight	348g (Fan + Heatsink)
Heat Sink
Material	Copper Base & Aluminum Fins with Heat Pipe Embedded
Fan
Fan Dimension	Ø 92.0 x 92.0 x 12.0 mm
Speed	At Duty Cycle 0~20%: 800±200 RPM At Duty Cycle 50%: 1900±10% RPM At Duty Cycle 100%: 3200 RPM
Bearing	2 Ball Bearing
Rated Voltage	12V
Power	At Duty Cycle 0~20%: 0.2W At Duty Cycle 50%: 0.5W At Duty Cycle 100%: 1.6W
Air Flow	At Duty Cycle 0~20%: 9.88 CFM At Duty Cycle 50%: 21.38 CFM At Duty Cycle 100%: 35.78 CFM
Noise Level	At Duty Cycle 0~20%: 22.3 dBA At Duty Cycle 50%: 26.1 dBA At Duty Cycle 100%: 36.2 dBA
Static Pressure	At Duty Cycle 0~20%: 0.28 mm-H2O At Duty Cycle 50%: 1.22 mm-H2O At Duty Cycle 100%: 3.21 mm-H2O
Lead Wire Pin Out	Pin1-Black (-) Pin2-Black(+) Pin3-Black (Tachometer/Signal output) Pin4-Black(PWM)
Disclaimer	*All product specifications and product images are subject to change without notice.
