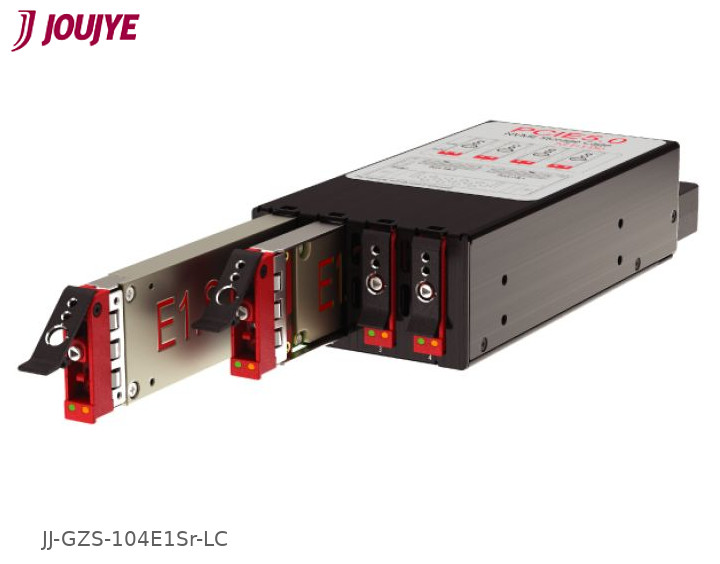

JJ-GZS-104E1Sr-LC/GEN5 for 4 x E1.S NVMe in half 5.25"/MCIO

item no.: A 2845

Not in stock

-- €

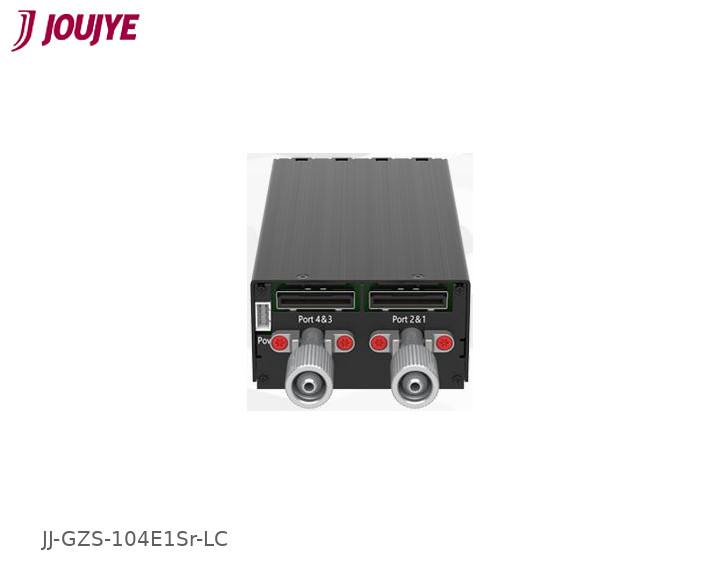

Power control 2 x MCIO x8 connectors

Support GEN5

Support 4 x E1.S NVMe SSD

HDD Type 5.8/8.0mm (with Z-105A tray)

HDD Type 9.5mm (with Z-109A tray)

1 x 2x4 power connector (Pitch 2.0)

Liquid Cooling

With anti-vibration spring design on each swapping carrier

Aluminum frame with stainless tray

Triangle Keylock design

LED indication provided by the SSD

Form factor: Half 5,25" drive bay width

Dimension: 193.35 (L) x 72.4 (W) x 39.8 (H) mm

SPECIFICATIONS:

Model Name	JJ-GZS-104E1Sr-LC
Form Factors	Half 5,25" drive bay width
Support SSD type	For 4 x E1.S NVMe SSD Support GEN5 / GEN4 / GEN3 Support HDD Type 5.8/8.0mm (with Z-105A tray) Support HDD Type 9.5mm (with Z-109A tray)
Interface	2 x MCIO x8 connectors 1 x 2x4 power connector (Pitch 2.0)
Installation Design	Tri-angle security keylock designed on the SSD tray With anti-vibration spring design on each swapping carrier
Material & Cooling	Aluminum frame with stainless tray Liquid cooling
LED Indication	Provided by the SSD
Dimensions [mm]	193.35 (L) x 72.4 (W) x 39.8mm (H)
Weight	0.62 Kg
