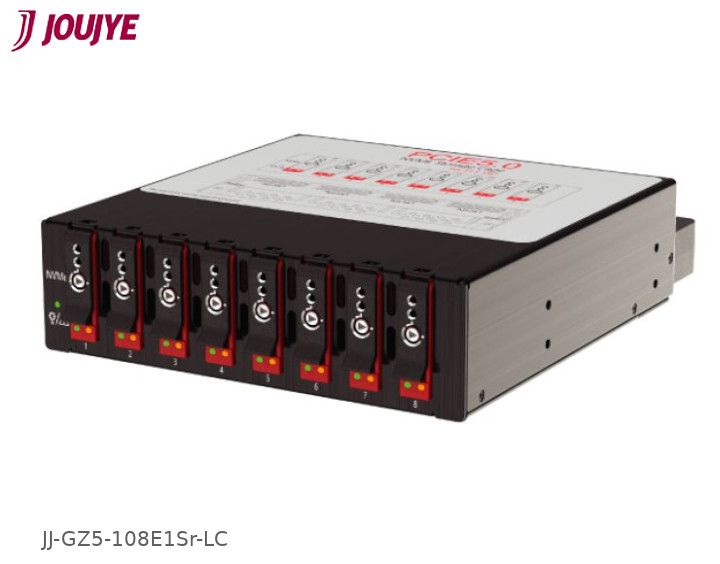

| Model Name |
JJ-GZ5-108E1Sr-LC |
| Form Factors |

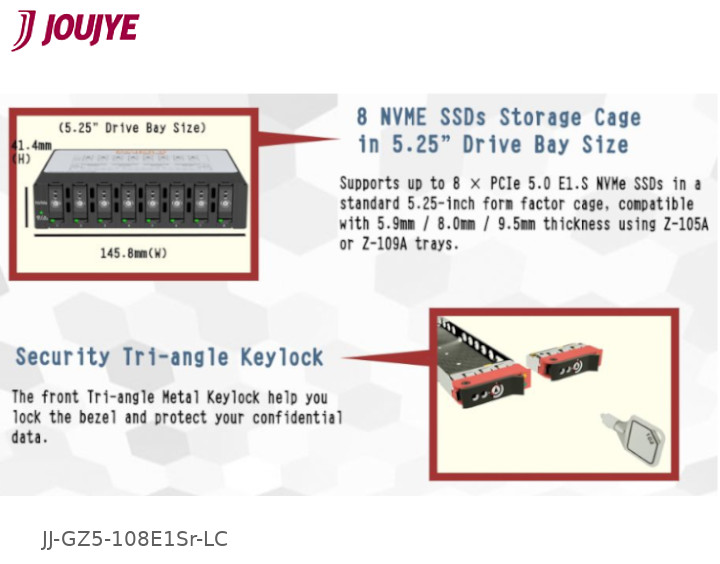

- 1 x 5.25" drive bay width
|
| Support SSD type |
- For 8 x E1.S NVMe SSD
- Support PCIe GEN5 / GEN4 / GEN3 (128/64/32 Gbps)

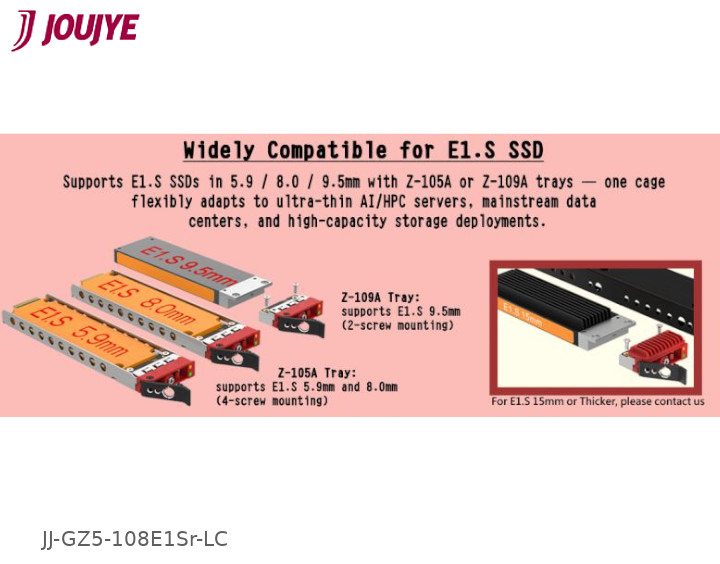

- Support HDD Type 5.9/8.0mm (with Z-105A tray)
- Support HDD Type 9.5mm (with Z-109A tray)
|
| Interface |

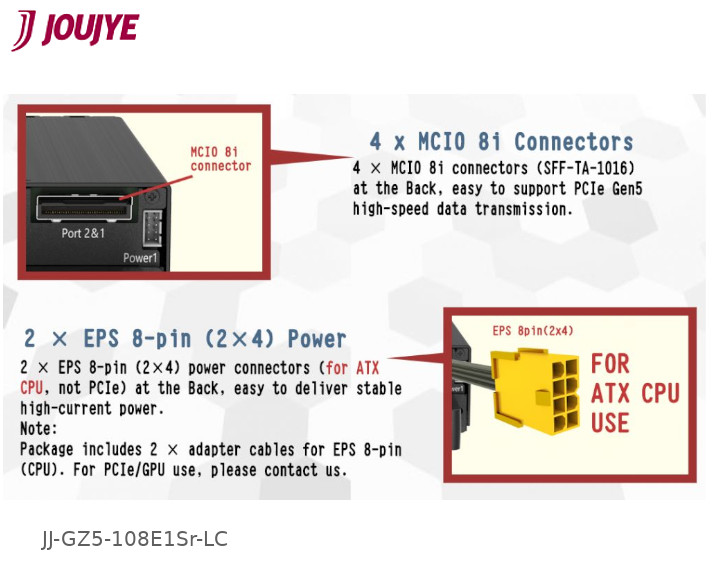

- 4 x MCIO x8 connectors
- 2 x 2x4 power connector (Pitch 2.0)
|
| Installation Design |
- Tri-angle security keylock designed on the SSD tray
- With anti-vibration spring design on each swapping carrier
|

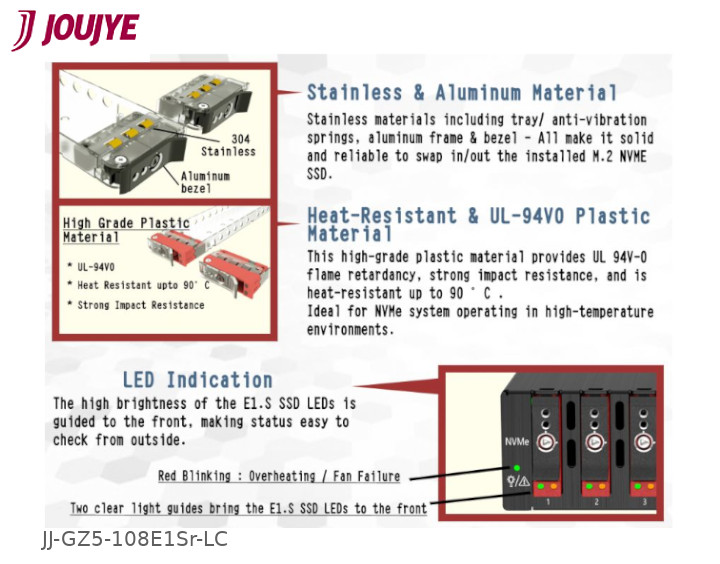

| Material & Cooling |
- Aluminum frame and copper pipe for liquid cooling and high-grade heat-resistant thermoplastic tray (UL-94V0)

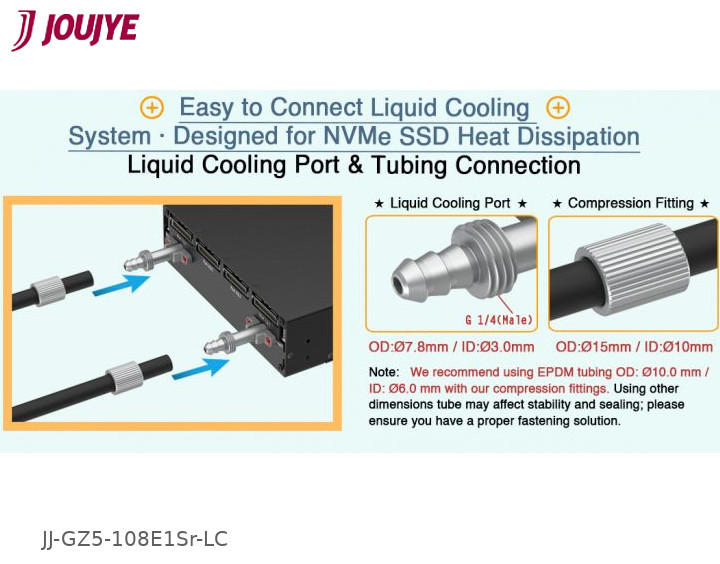

- Liquid cooling
- Liquid cooling port OD: ⌀ 7.8mm / ID: ⌀ 3.0mm
- Liquid cooling compression fitting OD: ⌀ 15.0mm / ID: ⌀ 10.5mm
- It is recommanded to use EPDM tubing (OD: ⌀ 10.0mm / ID: ⌀ 6.0mm with the product's liquid cooling ports
|
| LED Indication |
- Provided by the SSD, with high transparency light guide
|
| Power |
- 2 x EPS 8pin (2x4) power connector (for ATX CPU not PCIe)
|
| Dimensions [mm] |
- 186.2 (L) x 145.8 (W) x 41.4mm (H)
|
| Weight |
1.23 Kg |
