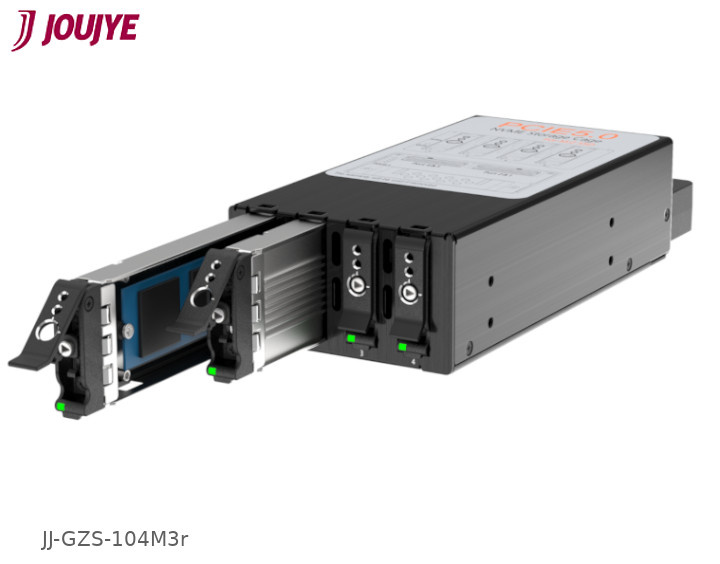

JJ-GZS-104M3r/GEN5 for 4 x M.2 NVMe in Half 5.25"/MCIO

item no.: A 2841

Product in stock

-- €

2 x MCIO x8 connectors

Support 4 x M.2 NVMe SSD (M-Key) PCIe 5.0/4.0/3.0

Support GEN5

Support M.2 SSD length 2230/2242/2260/2280mm

1 x EPS 8pin (2x4) power connector (for ATX CPU, not PCIe)

1 x 4010mm blower

With anti-vibration spring design on each swapping carrier

Slim size aluminum frame with stainless carrier

Aluminum frame & heat sink, stainless tray, with thermal pads 8W/mK (optional 16W/mK)

SSD Install: Standoff & Screw Installation

Triangle Keylock design

Power LED: Green / Access: Orange

Form factor: Half 5,25" drive bay width

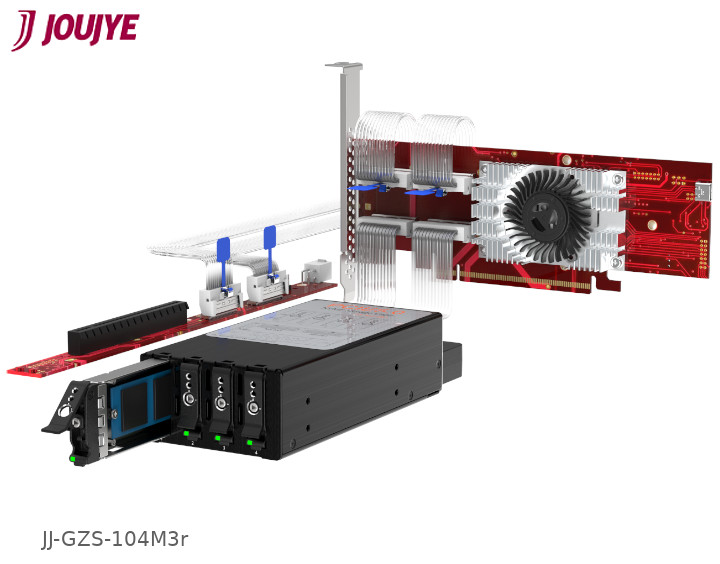

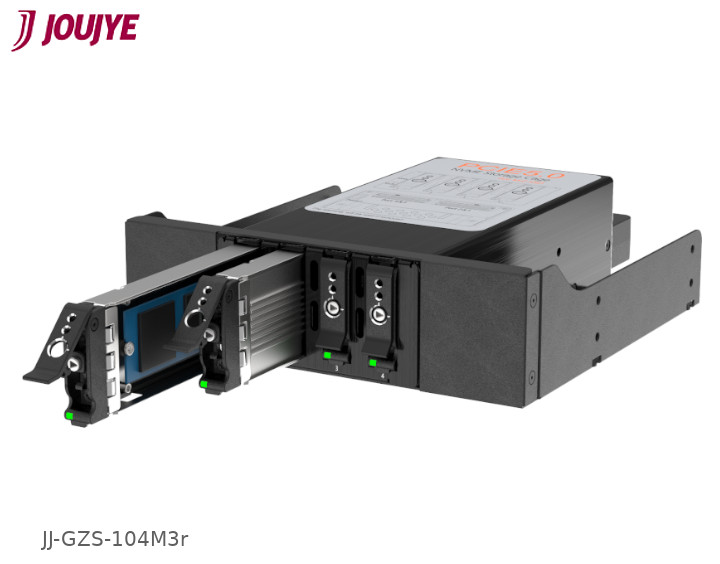

NB: The 5,25" bracket and the GEN5 switch cards shown in the picture are optional and not included

SPECIFICATIONS:

Model Name	JJ-GZS-104M3r
Form Factors	Half 5.25" bay / Slim size for 4 x NVME M.2 SSD
Support SSD type	For 4 x M.2 NVMe SSD Support GEN5 / GEN4 / GEN3 Support M.2 NVMe SSD (M-Key) PCIe 5.0/4.0/3.0 Support SSD length 2230/2242/2260/2280mm
Interface	Body: 2 x MCIO x8 connectors 1 x EPS 8pin (2x4) power connector (for ATX CPU, not PCIe)
Installation Design	Tri-angle security keylock designed on the SSD tray SSD Install: Standoff & Screw Installation With anti-vibration spring design on each swapping carrier
Material & Cooling	Aluminum frame & heat sink, stainless tray With thermal pads 8W/mK (optional 16W/mK) 1 x 4010mm blower
LED Indication	Power ON: Green Access: Orange blinking
Dimensions [mm]	186.5 (L) x 72.4 (W) x 39.8mm (H)
Weight	0.50Kg
