Product

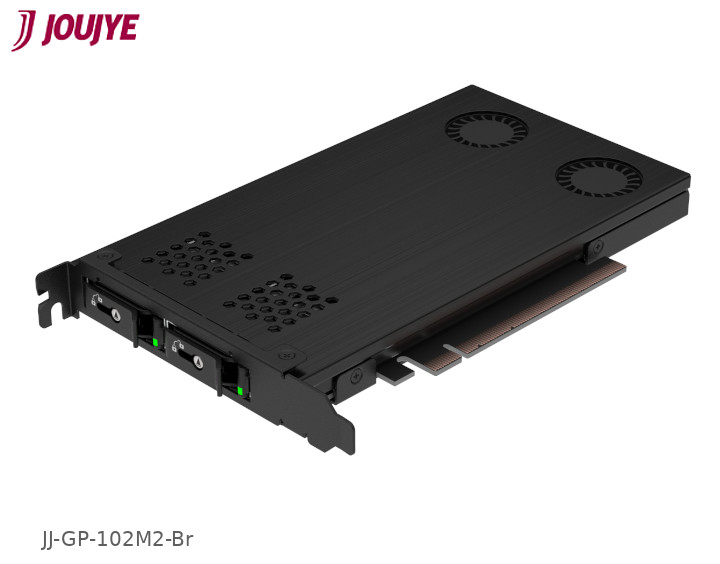

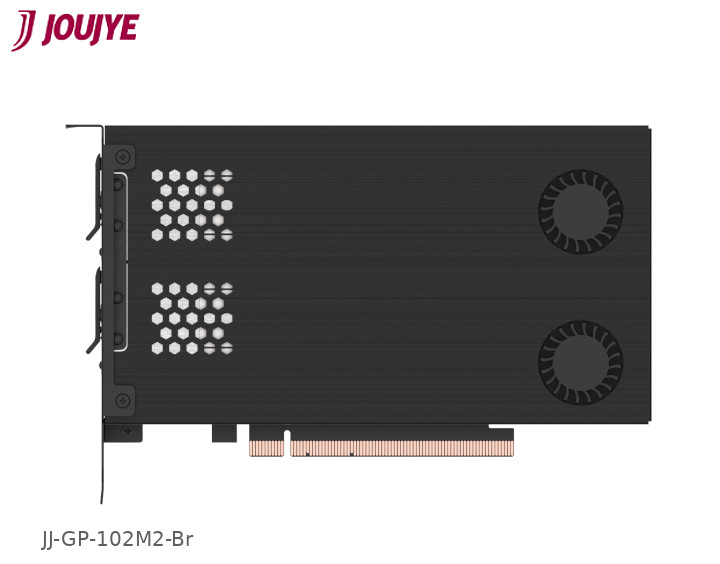

JJ-GP-102M2-Br M.2 NVMe PCIe Adapter for 2 x M.2 NVMe SSD

item no.: A 2834

Not in stock
-- €
send inquiry for this product
  • Description
  • Specs
  • Downloads
  • Related Products

  • PCIe Full-Heigt expansion slot via PCIe x16 interface

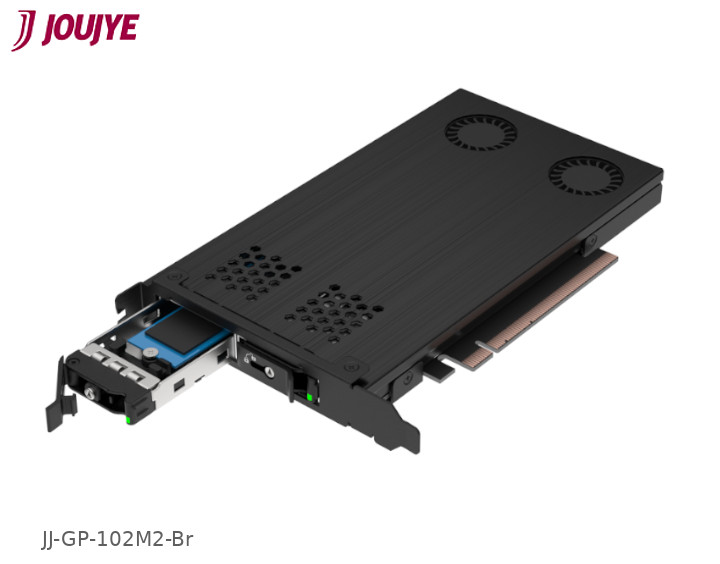

  • PCIe Bracket with swap in/out tray for 2 x M.2 SSD
  • For 2 x M.2 NVMe SSD (length 30/42/60/80mm)
  • Support PCIe 3.0 / PCIe 4.0 32/64Gbps
  • With triangle metal keylock design
  • With anti-vibration springs on the tray
  • Stainless frame/tray and aluminum fan cover and front bezel
  • With heat sink pad
  • LED x 1 : Power on : Green & Accessing : Orange blinking
  • Dim: 186.4 (L) x 120.8 (W) x 22.0 (H) mm
  • Weight : 390g

  • NB: The Hot Swap function depends on the mainboard


    JJ-GP-102M2-Br connects the M.2 via PCIe Bus but the NVMe hot-swap function in PCIe Bus ist still limited and depends on the mainboard.
    Only when the PCIe Bus on mainboard provides the hotplug function, the JJ-GP-102M2-Br can support the hot swap function.

    If NOT, please power OFF the system BEFORE swap in/out the installed NVMe M.2 SSD to avoid unexpected failure in the system.
    If you need the hot swap function please refer to other models, or to the suggested NVMe HBA / RAID card information.

    • SPECIFICATIONS:
    Model Name JJ-GP-102M2-Br M.2 NVMe PCIe Adapter for 2 x M.2 NVMe SSD
    Form Factors
    • PCIe expansion slot
    • PCIe Bracket with swap in/out backplane cage for 2 x M.2 NVMe SSD
    Support SSD type
    • For 2 x M.2 NVMe SSD (length 30/42/60/80 mm)
    • With PCIe full height
    Interface
    • Support PCIe 3.0/4.0 32/64 Gbps
    • Optimized layout for PCIe 4.0
    • Power via PCIe x16 Golden Finger
    • Motherboard or add-on card must support PCIe bifurcation
    Antivibration Design
    • With anti-vibration springs on the tray
    • With 2 x 4010 blower fans
    Material
    • Stainless frame/tray and aluminum cover and front bezel with triangle keylock design
    • Heat sink thermal pad
    LED Indication
    • Power ON: Green
    • Access: Orange blinking
    Dimensions [mm]
    • 186.4 (L) x 120.8 (W) x 22.0 (H) mm
    Weight 0.39 kg
