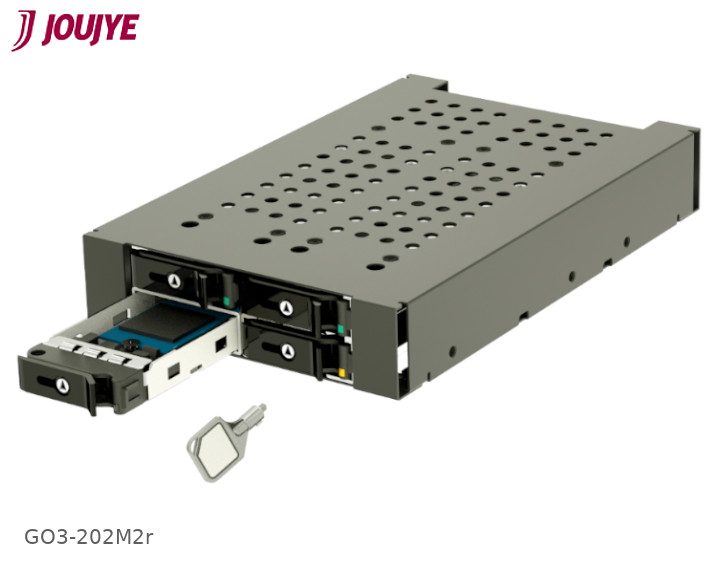

JJ-GO3-202M2r OCuLink 4i (SFF-8612) 1 x 3.5"for 4 x M.2

item no.: A 2815

Not in stock

-- €

NVMe

Oculink 4i SFF-8612 (9402) connector x 4

Support M.2 NVMe SSD (M-Key) PCIe 3.0/PCIe 4.0 x4

Support GEN3 (32Gbps) and GEN4 (64Gbps)

Small 4pin power connector x 4 + 2pin fan connector x 4

Support M.2 SSD length 2230/2242/2260/2280mm

Tool-less installation, or build-in screw

Aluminum frame + stainless tray with aluminum front bezel

With aluminum heat sink & thermal pad on the M.2 SSD carrier

Keylock design

SPECIFICATIONS:

Model Name	JJ-GO3-202M2r/ Oculink (SFF-8611) 1x3.5" for 4 x M.2 NVMe
Form Factors	1 x 3,5" size for 4 x M.2 NVMe SSD
Support SSD type	For 4 x M.2 NVMe SSD Support GEN3 (32Gbps) and GEN4 (64Gbps) Support M.2 NVMe SSD (M-Key) PCIe 3.0/PCIe 4.0 x4 SSD length 2230/2242/2260/2280mm
Interface	Body: 4 x Oculink (SFF-8611) 4i connector 4 x Mini 4pin power connector 2pin fan connector x 4
Installation Design	Tri-angle security keylock designed on the SSD tray With aluminum heat sink & thermal pad on the M.2 SSD carrier Tray: Anti-vibration/grounded springs
Material	Aluminum frame + stainless tray with aluminum front bezel
LED Indication	Power ON: Green Access: Orange blinking
Dimensions [mm]	159mm (L) x 101.2mm (W) x 25.4mm (H)
Weight	0.46Kg
