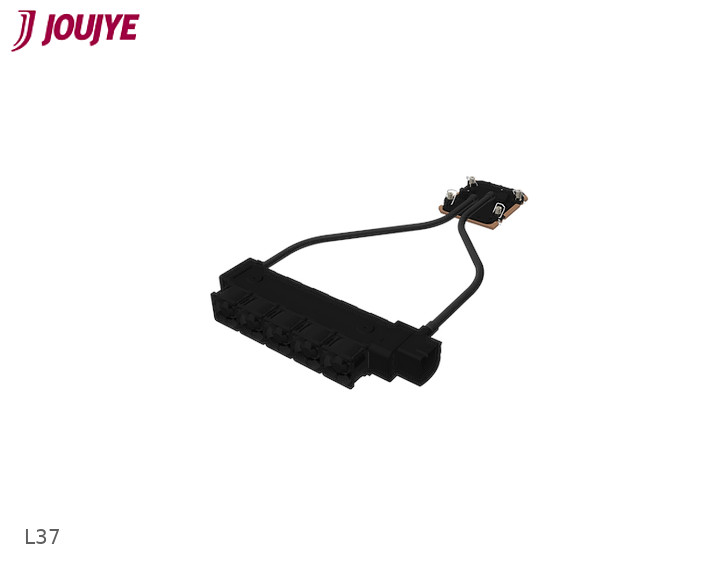

Cooler L37 Water Cooling LGA 7529 for 1U

item no.: A 2807

Not in stock

-- €

For Intel® Granite Rapid SP Processors

Support CPU power up to 500W

For 1U Server and up

Coldplate Module with Copper Base

5 x 4cm cooling fans with 4-Pin PWM connector

Each fan should have its own fan header due to high current consumption at full speed

Mounting accessories are included

SPECIFICATIONS:

Application
Socket	Liquid Cooler Recommended for Intel® Granite Rapid SP Processors Intel Socket LGA7529
Solution	1U Server and up
CPU	Intel
Technical Data
Fan Dimension	40 x 40 x 28 mm (5 fans) Each fan should have its own fan header due to the high current consumption at full speed
Water Pump	Stand-alone Water Pump with Powerful Flow Rate 2.9 Liter Per Minute
Speed	At Duty Cycle 20%: 2000 ± 10%RPM At Duty Cycle 50%: 10000 ±10%RPM At Duty Cycle 100%: 18000 ±10%RPM
Rated Voltage	12V
Bearing	2 Ball Bearing
Maximum Air Flow	At Duty Cycle 20%: 2.944 CFM At Duty Cycle 50%: 14.72 CFM At Duty Cycle 100%: 26.5 CFM
Noise Level	At Duty Cycle 20%: 16.00 dBA At Duty Cycle 50%: 44.24 dBA At Duty Cycle 100%: 57.00 dBA

Air Pressure
Rated Static Pressure	At Duty Cycle 0~20%: 0.61 mm-H2O At Duty Cycle 50%: 15.12 mm-H2O At Duty Cycle 100%: 49.0 mm-H2O
CPU power
Input Power	At Duty Cycle 0~20%: 2.4W At Duty Cycle 50%: 7.2W At Duty Cycle 100%: 15.6W
Lead Wire Pin Out
Lead Wire Pin Out	Pin1- Black(-) Pin2- Yellow (+) Pin3- Green(Tachometer/Signal Output) Pin4- Blue (PWM Control)
Cold plate	Cold Plate Module with Copper Base Support CPU power up to 500W
