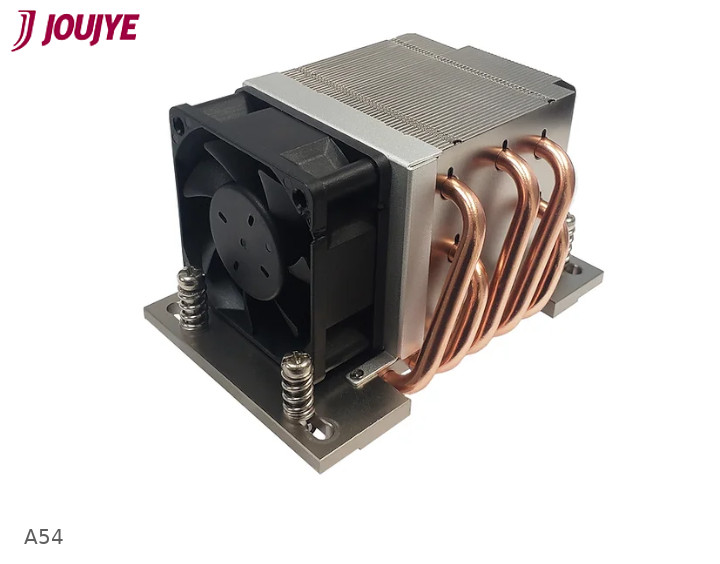

Cooler A54 AMD SP6 - 2U Active RoHS

item no.: A 2796

available soon

-- €

AMD® EPYC™ SP6 / TR5

Recommend for AMD® THREADRIPPER / AMD® THREADRIPPER PRO 7000 / AMD® EPYC™ Processor

Aluminum Heatsink with Heatpipe Embedded

Active Cooler with PWM for 2U Server & up

TDP/Turbo 225W (SP6) / 350W (sTR5)

Disclaimer: All product specifications and product images are subject to change without notice

SPECIFICATIONS:

Application
CPU Support	AMD® EPYC™ Processor
Socket	SP6
Solution	2U Server and Up
Technical Data
Dimension	119 x 79 x 66 mm
Weight	455g
Heat Sink
Material	Aluminum Heatsink with Heatpipe Embedded
Fan
Fan dimension	Ø 60 x 60 x 25 mm
Speed	At Duty Cycle 20%: 2300 ±10% RPM At Duty Cycle 50%: 5400 ± 10% RPM At Duty Cycle 100%: 11000 ± 10% RPM
Bearing	2 Ball Bearing
Rated Voltage	12 V
Power	At Duty Cycle 20%: 0.84W At Duty Cycle 50%: 2.76W At Duty Cycle 100%: 18.0W
Air Flow	At Duty Cycle 20%: 11.91 CFM At Duty Cycle 50%: 28.38 CFM At Duty Cycle 100%: 58.31 CFM
Noise Level	At Duty Cycle 20%: 25.8 dBA At Duty Cycle 50%: 44.4 dBA At Duty Cycle 100%: 59.8 dBA
Lead Wire Pin Out	Pin1-(-) Pin2-(+) Pin3-(Techometer/Signal output) Pin4-(PWM)
Thermal Grease	Shin-Etsu 7762 Pre-printed
