Product

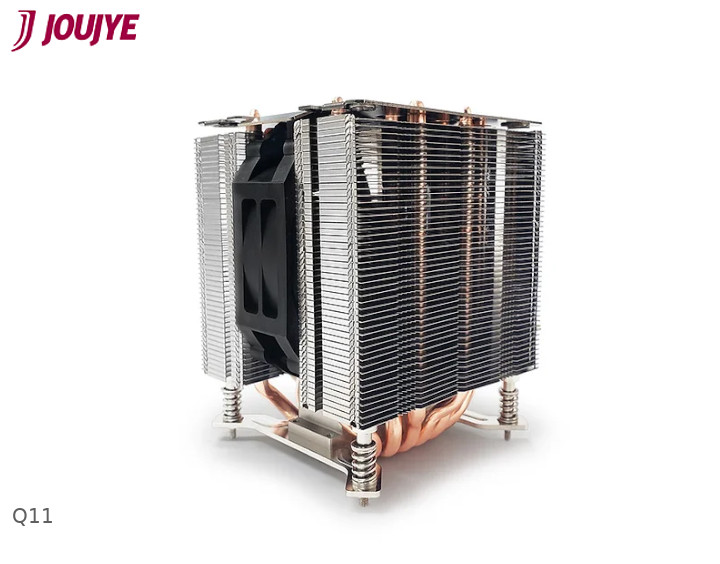

Cooler Q11 Intel 1851/1700 - 4U Active RoHS

item no.: A 2779

Not in stock
-- €
send inquiry for this product
  • Description
  • Specs
  • Downloads
  • Related Products

  • LGA 1851/1700
  • For Intel® Core 12th -15th Gen
  • Heatpipes with Aluminum Base and Aluminum Fin Stack
  • TDP 170W
  • Disclaimer: All product specifications and product images are subject to change without notice

    • SPECIFICATIONS:
    Application
    CPU Recommend for Intel® Alder Lake S Processor
    Socket Socket LGA 1851/1700
    Technical Data
    Overall dimension 95 x 95.0 x 130 mm
    Weight 710g
    Heat Sink
    Material Heatpipes with Aluminum Base and Aluminum Fin Stack
    Fan
    Dimension 103 x 103 x 30 mm
    Type Double Ball Bearing with PWM function
    Rated Voltage 12 V

    Speed At Duty Cycle 0~20% : 800±200 RPM
    At Duty Cycle 50% : 1300±10% RPM
    At Duty Cycle 100% : 1800 RPM Min.
    Power At Duty Cycle 0~20% : 0.3W
    At Duty Cycle 50% : 0.48W
    At Duty Cycle 100% : 0.96W
    Air Flow At Duty Cycle 0~20% : 14.88CFM
    At Duty Cycle 50% : 25.26CFM
    At Duty Cycle 100% : 35.03CFM
    Noise Level 22.3 dBA
    Raited Static Pressure At Duty Cycle 0~20% : 0.44 mm-H2O
    At Duty Cycle 50% : 1.16 mm-H2O
    At Duty Cycle 100% : 2.06 mm-H2O
    Lead Wire Pin Out Pin1-(-)
    Pin2-(+)
    Pin3-(Techometer/Signal output)
    Pin4-(PWM)
