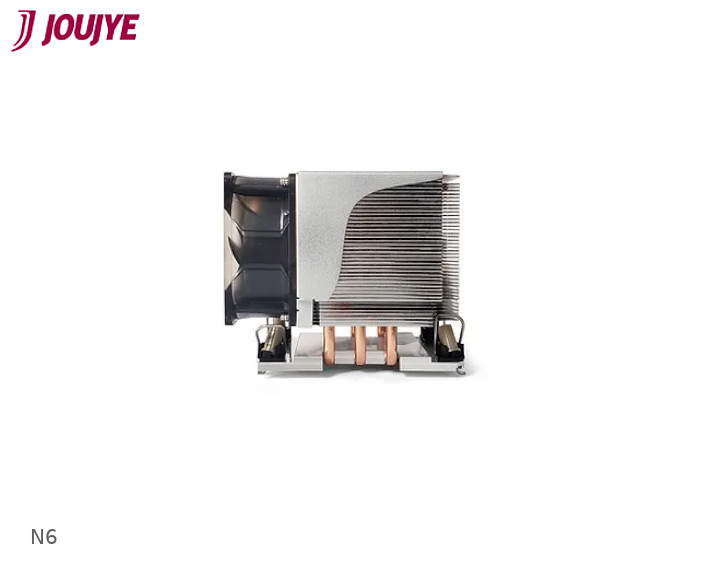

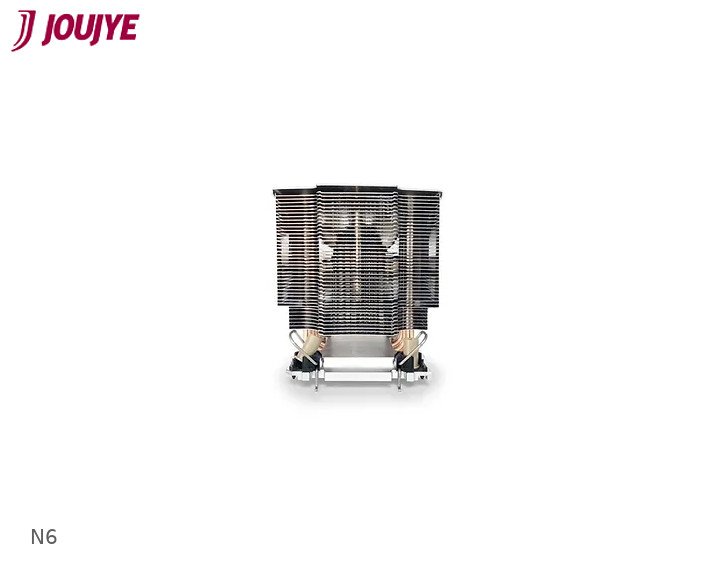

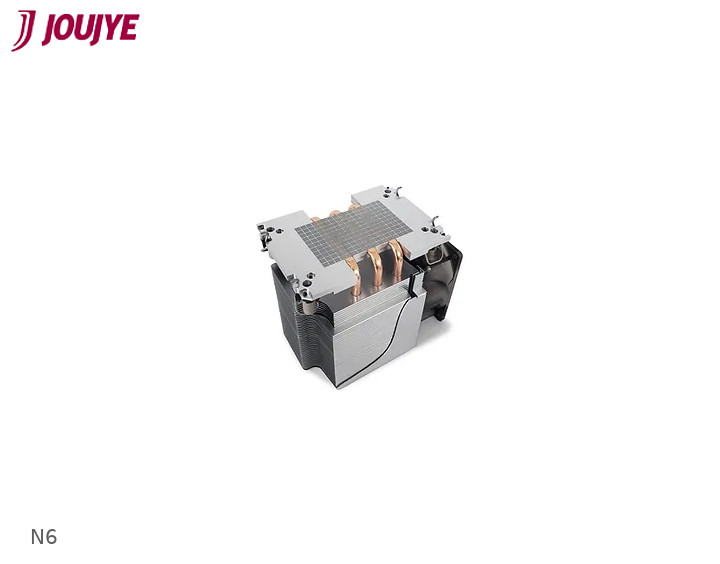

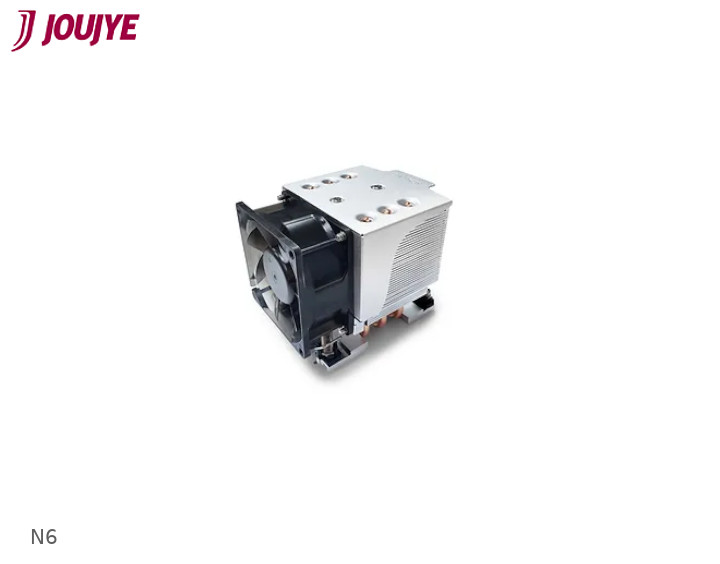

Cooler N6 Intel 4189-4/-5 (P4/P5 or P+) 3U Active RoHS

item no.: A 2725

Product in stock

-- €

LGA 4189-4/5 (Socket P4/P5 or P+)

Recommend for Intel® Whitley Platform Ice Lake and Cooper Lake Server Processor

Aluminum Stacked-fin with Heat Pipes directly contact CPU

With PWM

Up to TDP 270W

Shin-Etsu 7762 Pre-printed

*For Intel® 3rd Gen. Xeon Scalable Processor(code name Copper Lake, Socket LGA4189-5), DY-PK-4189-P5 Package Carrier needs to purchase separately.

SPECIFICATIONS:

Application
CPU Socket	LGA4189-4/5(Socket P4/P5 or P+)
CPU	Recommend for Intel® Whitley Platform Ice Lake and Cooper Lake Server Processor
Solution	Active Cooler for 3U Server and up
Technical Data
Overall dimension	113.0 x 78.0 x 110.0 mm
Weight	600g
Heat Sink
Material	Aluminum Stacked-fin with Heat Pipes directly contact CPU
Fan
Fan Dimension	80 x 38 mm
Speed	At Duty Cycle 0~20%: 800 ± 200 RPM At Duty Cycle 50%: 1500 ± 10% RPM At Duty Cycle 100%: 3000 ± 10% RPM
Bearing	Double-Ball Bearing
Rated Voltage	12 V
Power	At Duty Cycle 0~20%: 0.48W At Duty Cycle 50%: 0.84W At Duty Cycle 100%: 2.88W
Air Flow	At Duty Cycle 0~20%: 13.67 CFM At Duty Cycle 50%: 25.63 CFM At Duty Cycle 100%: 51.26 CFM
Noise Level	At Duty Cycle 0~20%: 13.45 dBA At Duty Cycle 50%: 27.1 dBA At Duty Cycle 100%: 42.15 dBA
Air Pressure	At Duty Cycle 0~20%: 0.402 mm-H2O At Duty Cycle 50%: 1.41 mm-H2O At Duty Cycle 100%: 5.66 mm-H2O
Lead Wire Pin Out	Pin1-Black (-) Pin2-Yellow (+) Pin3-Green (Tachometer/Signal output) Pin4-Blue (PWM)
Thermal grease	Shin-Etsu 7762 Pre-printed
