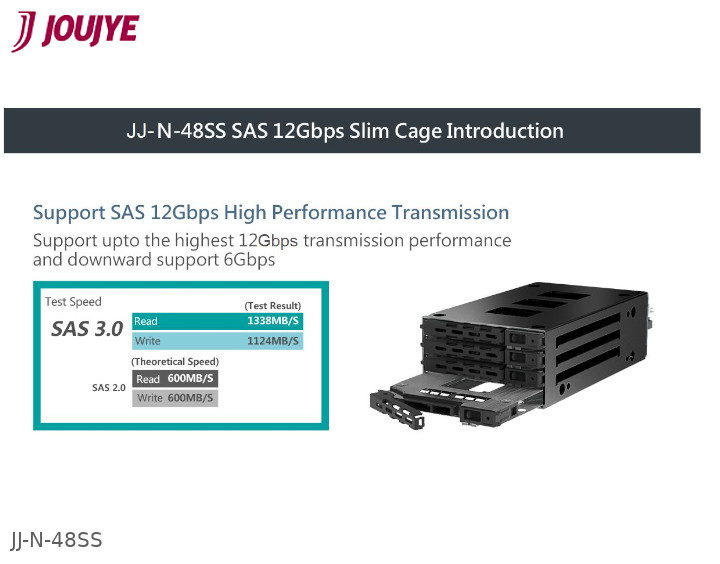

JJ-N-48SS15 12G SATA+SAS 4x2,5"HDD/SSD + bracket

item no.: A 2707

Product in stock
-- €
send inquiry for this product
  • Description
  • Specs
  • Downloads
  • Related Products

  • For 1 x 5.25" bay size
  • For 4 x 2.5” SATA I, II, III (6G) or SAS I, II, III (12G) HDD/SSD
  • For up to 7mm height HDD/SSD
  • 7pin SATA ports x 4
  • 15pin Power port x 1
  • Metal key lock design
  • Inkl. Mounting Bracket
  • SPECIFICATIONS:
    Model Name JJ-N-48SS15
    Form Factor For 1 x 5.25" Drive bay
    Support HDD types
    • 4 x 2.5” SATA I, II, III & SAS I, II, III HDD/SSD
    • Supported height up to 7mm
    • Up to 12Gb/s (SAS-3)
    Interface
    • 7pin SATA ports x 4
    • 15pin power port x 1
    • 3pin Cooling fan jumper x 1
    Security Design
    • Triangle metal key lock
    Material Metal Frame & Stainless HDD Tray
    LED Indication
    • Power ON: Green
    • HDD Access: Orange blinking
    Colour Black
    Dimensions [mm] 146(L) x 140(W) x 42(H) mm
    Weight 0.65Kg
