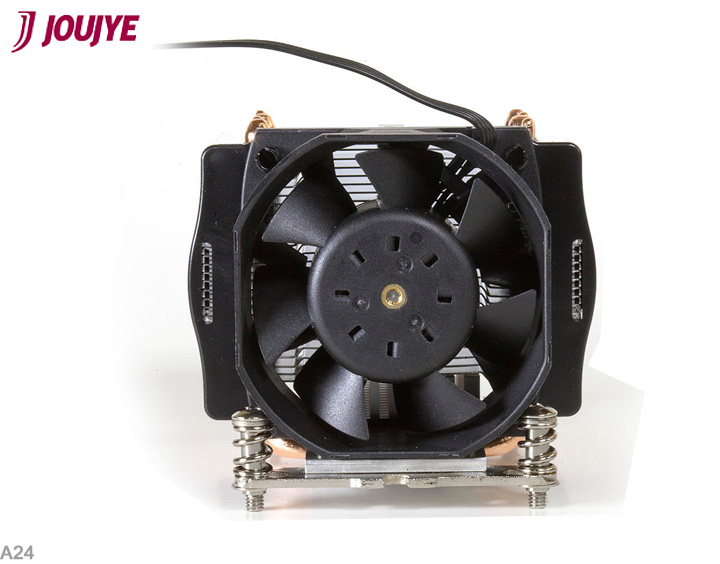

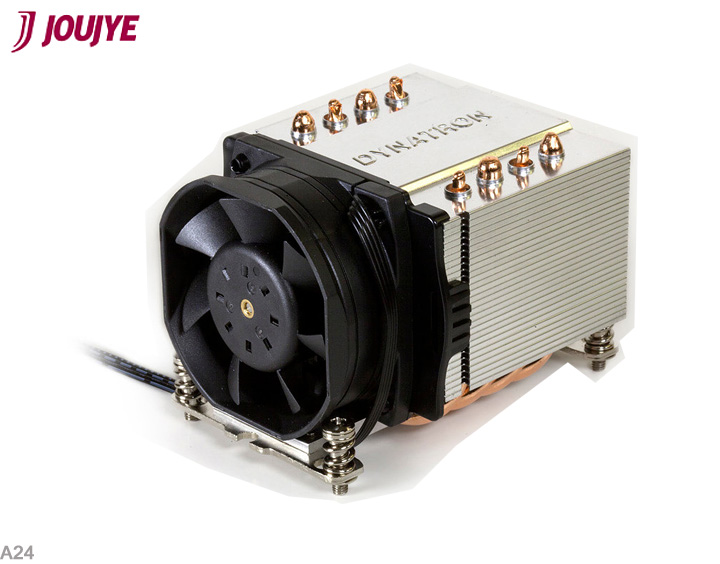

Cooler A24 AMD AM4/AM5 - 2U Active RoHS

item no.: A 2645

Product in stock
-- €
send inquiry for this product
  • Description
  • Specs
  • Downloads
  • Related Products

  • For AMD® Ryzen Socket AM4 and AM5 up to 120W TDP
  • Active Cooler for 2U Server & up
  • Aluminum stacked fin with heatpipes
  • Disclaimer: All product specifications and product images are subject to change without notice

    • SPECIFICATIONS:
    Application
    CPU Recommend for AMD® Ryzen
    Socket Socket AM4 / AM5
    Technical Data
    Overall dimension 107 x 78 x 67 mm
    Weight 400g
    Heat Sink
    Material Aluminum Stacked Fin with Heat Pipes directly contact CPU
    Fan
    Model Number DF126028BL - PWMG
    Dimension 60 x 60 x 28 mm
    Bearing 2 x Ball
    Rated Voltage 12 V
    Speed At Duty Cycle 0~20% : 1500±10% RPM
    At Duty Cycle 50% : 3500±10% RPM
    At Duty Cycle 100% : 7000 RPM Min.
    Power At Duty Cycle 0~20% : 0.60 W
    At Duty Cycle 50% : 2.16 W
    At Duty Cycle 100% : 7.20 W
    Air Flow At Duty Cycle 0~20% : 8.8 CFM
    At Duty Cycle 50% : 20.3 CFM
    At Duty Cycle 100% : 40.5 CFM
    Noise Level At Duty Cycle 0~20% : 16.0 dBA
    At Duty Cycle 50% : 32.9 dBA
    At Duty Cycle 100% : 47.5 dBA
    Raited Static Pressure At Duty Cycle 0~20% : 0.7 mm-H2O
    At Duty Cycle 50% : 3.6 mm-H2O
    At Duty Cycle 100% : 14.3 mm-H2O
    Lead Wire Pin Out Pin#1-(-)
    Pin2-(+)
    Pin3-(Techometer/Signal output)
    Pin4-(PWM)
