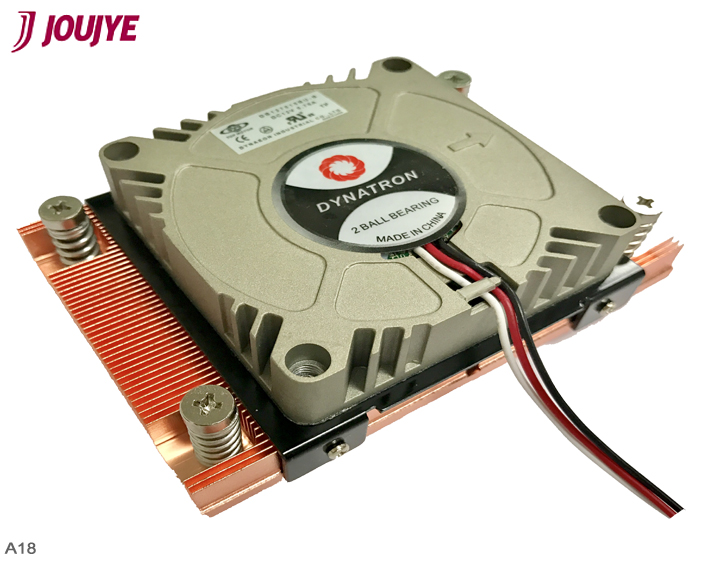

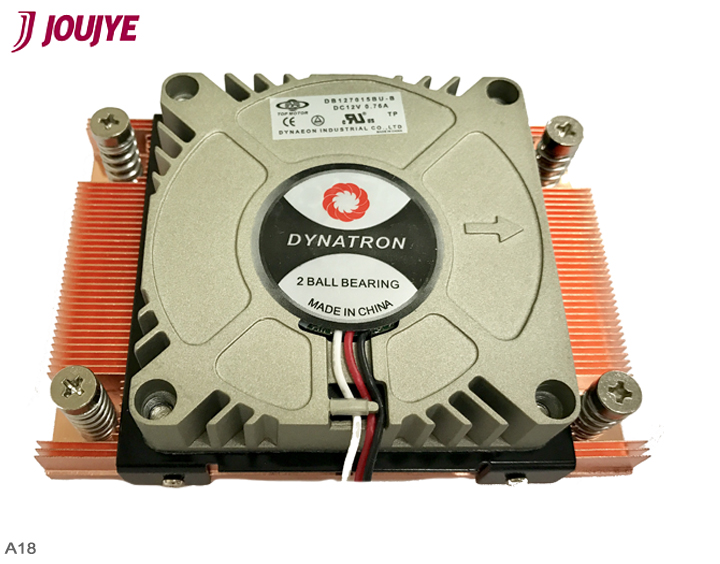

Cooler A18 AMD AM4/AM5 - 1U Active RoHS

item no.: A 2634

Product in stock

-- €

For AMD® Ryzen Processor Socket AM4/AM5 up to 105W

For 1U

Copper 1100 with Skived Fins

Heat Sink Captive Mounting

Disclaimer: *All product specifications and product images are subject to change without notice

SPECIFICATIONS:

Application
CPU	Recommend for AMD® Ryzen Processor, Socket AM4
Active Cooler For 1U Server
Technical Data
Overall dimension	106 x 76 x 27.5mm
Weight	502g ± 5g
Heat Sink
Material	Copper 1100 with Skived Fins
Extra features	Fin Direction Parallel to System Airflow
Fan
Dimension	70 x 70 x 15mm
Speed	At Duty Cycle 0~20%: 1100 ± 200 RPM At Duty Cycle 50%: 2600 ± 10% RPM At Duty Cycle 100%: 6000 ± 10% RPM
Bearing	Dual, Ball Bearing
Rated Voltage	12 V
Air Pressure	At Duty Cycle 0~20%: 1.25 mm-H2O At Duty Cycle 50%: 7.0 mm-H2O At Duty Cycle 100%: 50.46 mm-H2O
Air Flow	At Duty Cycle 0~20%: 2.5 CFM At Duty Cycle 50%: 5.8 CFM At Duty Cycle 100%: 14.3 CFM
Noise Level	At Duty Cycle 0~20%: 19.1 dBA At Duty Cycle 50%: 34.2 dBA At Duty Cycle 100%: 53.8 dBA
Lead Wire Pin Out	Pin1-(-) Pin2-(+) Pin3-Techometer/Signal output Pin4-(PWM)
