Product

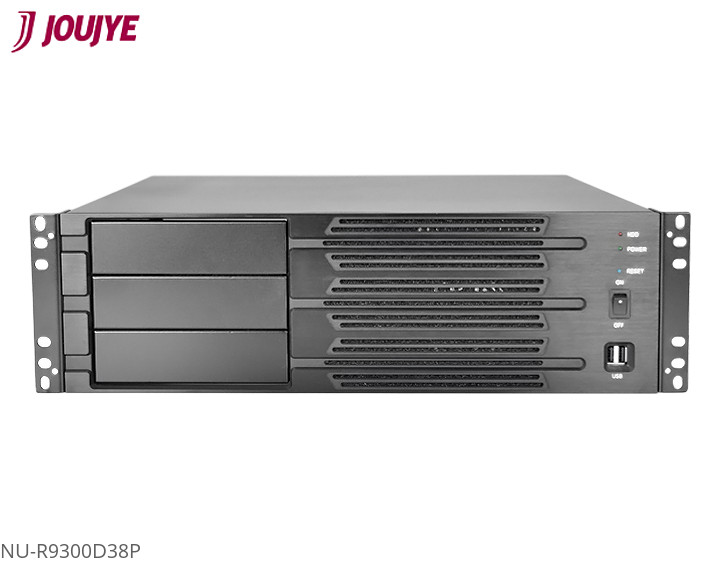

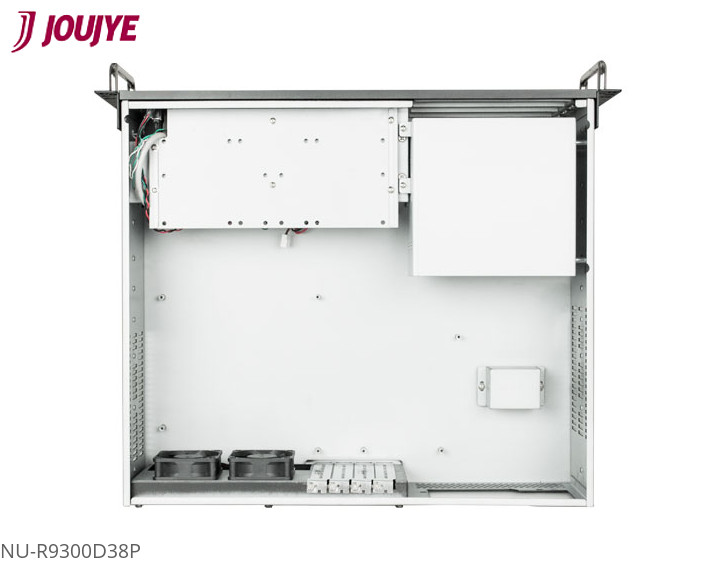

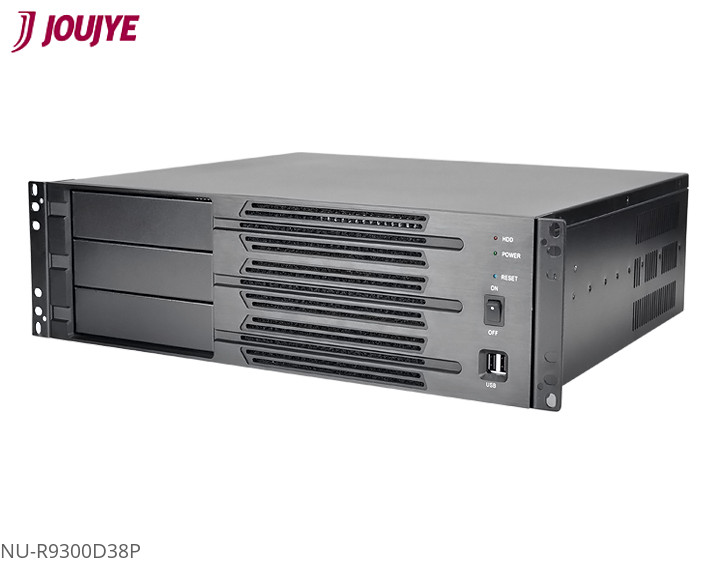

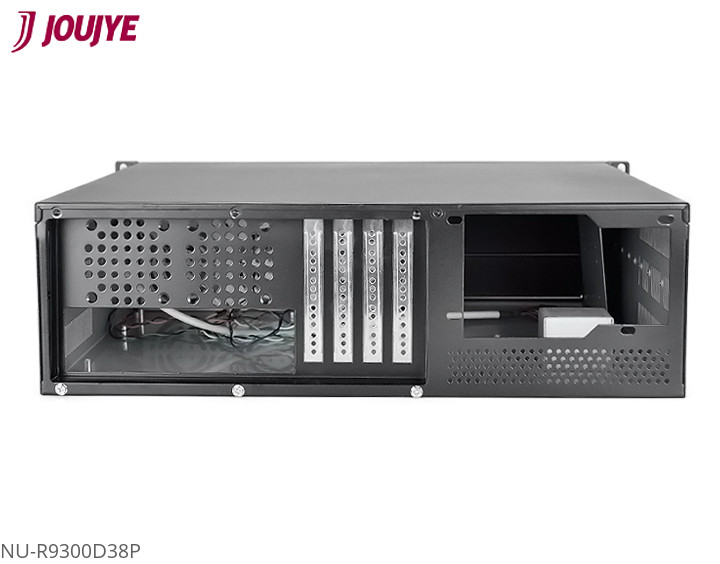

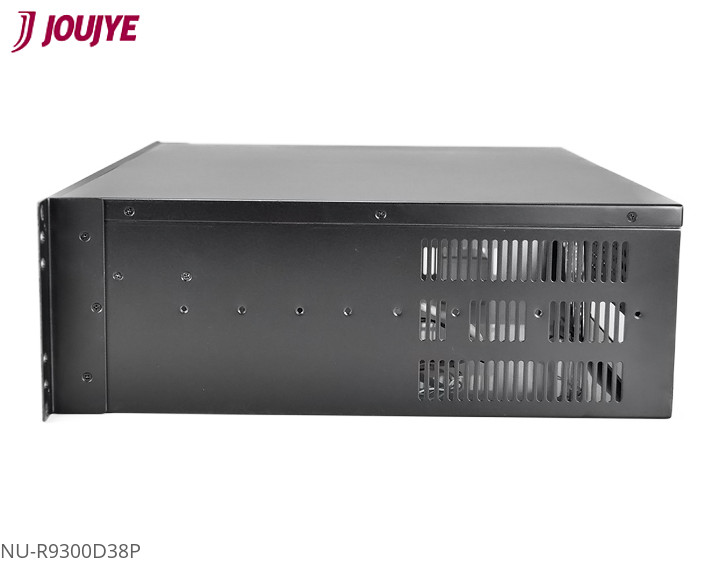

NU-R9300D38P 3U Rackmount Short / Black

item no.: A 2472

Product in stock
-- €
send inquiry for this product
  • Description
  • Specs
  • Downloads
  • Related Products

  • 3U up to ATX size motherboard
  • 4 x full height PCI slots
  • 3 x 5,25 ext. + 3 x 2,5 or 2 x 3,5 int.
  • Easy removable and washable dust filter
  • 3 x 80mm front ball bearing fans


    Despite its space saving design, this 3U rackmount chassis with only 15 depth, includes three front fans, dust filter, two front USB ports, three 5.25” open bay and two 3.5” or three 2.5" hidden bays, four full height expansion slots.
    The four full height PCI slots support PCI, PCI 64bits, AGP, and PCI-Express add-on cards, which enable expansion and upgrades for specialized functions and tasks.
    This rackmount chassis is compatible with either ATX, micro ATX or mini-ITX motherboards and can host a PS2 power supply (not included).


    Dust Filter
    The chassis includes an easy way to clean up the filter from dust and dirt that may hinder the optimal operation in your server chassis. The washable filter is strategically placed in front and on top of the chassis just behind the front bezel and top cover.


    Cooling fans
    The chassis is equipped with 3x 80mm fans to provide cool air from the exterior and extend the lifecyle of the internal components of the system.

    • SPECIFICATIONS:
    Model NU-R9300D38P
    Form Factor 3U / 19" Rackmount standard
    Product Category 3U Rackmount
    Case Color Black
    MotherBoard Size MicroATX (9.6 in. x 9.6 in.)

    ATX (12 in. x 9.6 in.)

    Mini-ITX (6.7 in. x 6.7 in.)
    Air Filter Removable & Washable
    Drive Bay 5.25" x 3 (External)

    3.5" x 2 or 2.5" x 3 (Internal)
    External Bay 5.25" x 3 (External)
    Internal Bay 3.5" x 2 (Internal)

    2.5” x 2 (Internal)
    Switch Power On/Off

    Reset
    Power Supply PS3 Power Supply
    Cooling Fan 80mm x 3 (Intake)
    Ports USB 2.0 x 2 (Front)
    Indicators LED for Power / HDD and Reset
    Material Silky Polish Aluminum (Front Bezel)

    1.2mm Steel (Chassis body)
    Dimension (W x H x D) 483 x 133,35 x 381 (mm)

    19" x 5.25" x 15"
    Weight 15.00 lbs

    MANUFACTURE PACKAGE INFORMATION:
    Master Box Dimension 20.5" x 22.5" x 11" (W x L x H)
    Package Quantity 1 /Box
