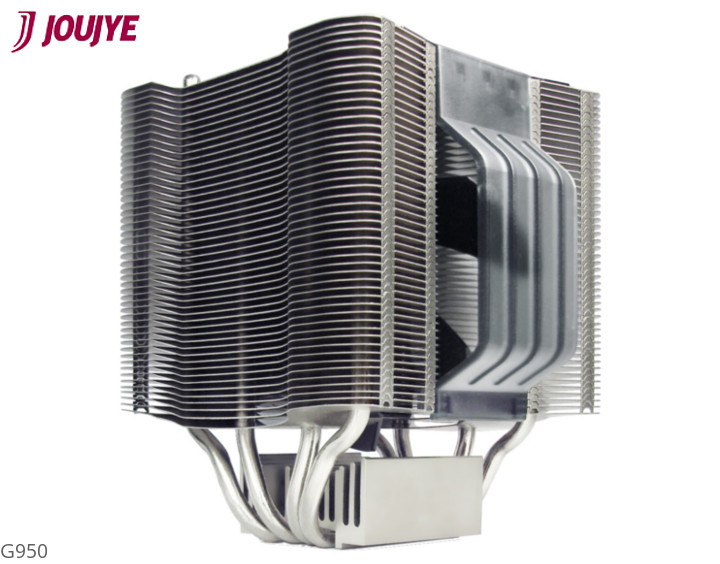

Cooler G950 Intel Neha. LGA1366 GENIUS Desktop Active RoHS

item no.: A 1626

Product in stock
-- €
send inquiry for this product
  • Description
  • Specs
  • Downloads
  • Related Products

  • Intel® Core i5, Core i7, Core 2 Extreme, Core 2 Quad, Core 2 Duo, Pentium D, Pentium 4, Celeron D, Celeron AMD® Phenom II X4, Phenom, Athlon 64 FX, Athlon 64 X2, Athlon 64, Sempron
  • Desktop solution
  • 4 high transmitted U-Shape heatpipes for repaid heat dissipation
  • State-of-art aluminum high-density wave-fin design maintans excellent air-flow management
  • Push-pin design for easy-standard installation
  • Innovative energy-saving fan saves up to 30% power
  • Heat sink engineered to maximize dissipation surface
  • Intelligent H.C.C. (Heatpipe Contact CPU) Technology: heatpipe contacts CPU processor directly and optimizes heat transfer rate
  • Silent and powerful PWM funktion 120mm fan delivers quiet cooling at whisper-quiet 19dBA during normal operation

    • SPECIFICATIONS:
    Application
    CPU socket Intel® Socket LGA 1156, LGA 1366, LGA 775
    AMD® Socket AM3, AM2+, AM2
    CPU Intel® Core i5, Core i7, Core 2 Extreme, Core 2 Quad, Core 2 Duo, Pentium D, Pentium 4, Celeron D, Celeron
    AMD® Phenom II X4, Phenom, Athlon 64 FX, Athlon 64 X2, Athlon 64, Sempron
    Technical Data
    Overall dimension 124 x 148 x120mm
    Weight 795 g
    Heat Sink
    Material Aluminum Fin with 4 x Ø 6mm Heatpipes in HTC structure
    Fan
    Dimension 120 x 120 x 25mm
    Speed At Duty Cycle 0~20%: 1000 RPM
    At Duty Cycle 50%: 1300 RPM
    At Duty Cycle 100%: 1600 RPM
    Bearing sleeve
    Rated Voltage 12 V
    Power At Duty Cycle 0~20%: 0.6 W
    At Duty Cycle 50%: 1.2 W
    At Duty Cycle 100%: 5.4 W
    Air Flow At Duty Cycle 0~20%: 42.5 CFM
    At Duty Cycle 50%: 55.2 CFM
    At Duty Cycle 100%: 68.0 CFM
    Noise Level At Duty Cycle 0~20%: 19.1 dBA
    At Duty Cycle 50%: 23.8 dBA
    At Duty Cycle 100%: 26.0 dBA
    Air pressure
    		 At Duty Cycle 0~20%: 0.539 inch-H2O
    At Duty Cycle 50%: 0.91 inch-H2O
    At Duty Cycle 100%: 1.379 inch-H2O
    Lead Wire Pin Out Pin1-Black (-)
    Pin2-Yellow (+)
    Pin3-Green (Techometer/Signal output)
    Pin4-Blue (PWM)
    Package Contents:
    G950 CPU Cooler x 1
    Mounting Kits for socket 1156, socket 1366, socket 775, socket AM2/AM2+/AM3
    GE-Toshiba TIG830SP thermal compound
    User Manual x 1
