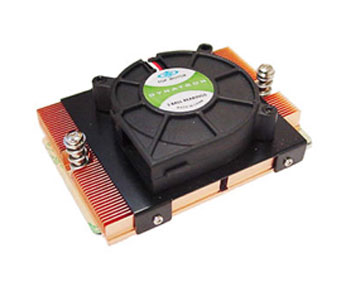

Cooler T71G AMD C32 / F1207 - 1U Active RoHS

item no.: A 1475

Product in stock
-- €
send inquiry for this product
  • Description
  • Specs
  • Downloads
  • Related Products

  • AMD Socket C32 Opetron 4100 Series 4184, 4180, 4130 , 4122, 4176HE, 4174HE, 4170HE, 4164EE, 4162EE & Shanghai & Barcelona processors -Third-Generation Opteron 2300 & 8300 series
  • 1U solution
  • SPECIFICATIONS:
    Application
    CPU socket C32/F 1207/754/939/940
    CPU AMD® Socket C32 Opetron 4100 Series 4184, 4180, 4130 , 4122, 4176HE, 4174HE, 4170HE, 4164EE, 4162EE & Shanghai & Barcelona processors -Third-Generation Opteron 2300 & 8300 series
    Technical Data
    Overall dimension 100.0 x 74.0 x 27.0 mm
    Weight 400 g
    Heat Sink
    Material Copper Heatsink
    Fan
    Dimension 60 x 60 x 15 mm
    Speed 6000 RPM
    Bearing Double Ball Bearing
    Rated Voltage 12 V
    Power 5.64 W
    Air Flow 7.4 CFM
    Noise Level 49.8 dBA
    Air Pressure 1.12 inch-H2O
    Lead Wire Pin Out Pin1-Black (-)
    Pin2-Yellow (+)
    Pin3-Green (Techometer/Signal output)
    Pin4-Blue (PWM)
