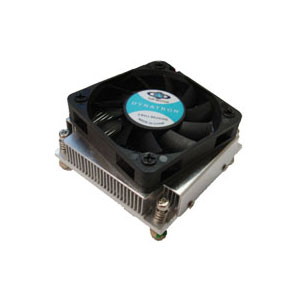

Cooler I54G Intel Pentium M 479 -1U Active RoHS

item no.: A 1296

Product in stock
-- €
send inquiry for this product
  • Description
  • Specs
  • Downloads
  • Related Products

  • Intel Pentium M Processor FC-PGA & Xeon Sossaman LV and ULV CPU processor
  • SPECIFICATIONS:
    Application
    CPU  Intel® Pentium® M Processor FC-PGA & Xeon® Sossaman LV and ULV CPU processor
    Technical Data
    Overall dimension 59.0 x 59.0 x 26.0 mm
    Weight 83 G
    Heat Sink
    Material Aluminum Heatsink
    Fan
    Dimension 50x50x10 mm
    Speed 5000 rpm
    Bearing Double Ball Bearing
    Rated Voltage 12 V
    Power 2.8 W
    Air Flow 10.8 cfm
    Noise Level 31.8 dBA
    Air Pressure * inch-H2O
    Lead Wire Pin Out Pin1-Black (-)
    Pin2-Red (+)
    Pin3-Techometer/Signal output
