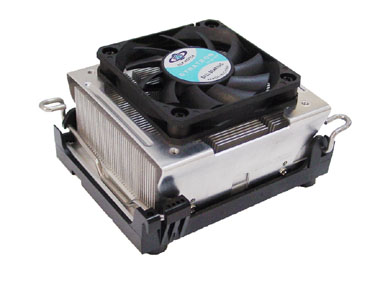

Cooler D28G Intel Pentium 478 - 2U Active RoHS

item no.: A 1013

Product in stock
-- €
send inquiry for this product
  • Description
  • Specs
  • Downloads
  • Related Products

  • Intel P4 Socket 478 up to 2.8GHz for 2U Server
  • for 2U Server
  • SPECIFICATIONS:
    Application
    CPU Intel® P4 Socket 478 up to 2.8GHz for 2U Server
    Technical Data
    Overall dimension 89.0 x 63.5 x 47.0 mm
    Weight 270 G
    Heat Sink
    Material Aluminum
    Dimension 89.0 x 63.5 x 32.0 mm
    Fan
    Dimension 60 x 60 x 10 mm
    Speed 5100 rpm
    Bearing 1xBall
    Rated Voltage 12 V
    Power 3.48 W
    Air Flow 24.4 cfm
    Noise Level 40 dBA
    Air Pressure 0.18 inch-H2O
    Lead Wire Pin Out Pin1-Black (-)
    Pin2-Red (+)
    Pin3-Techometer/Signal output
