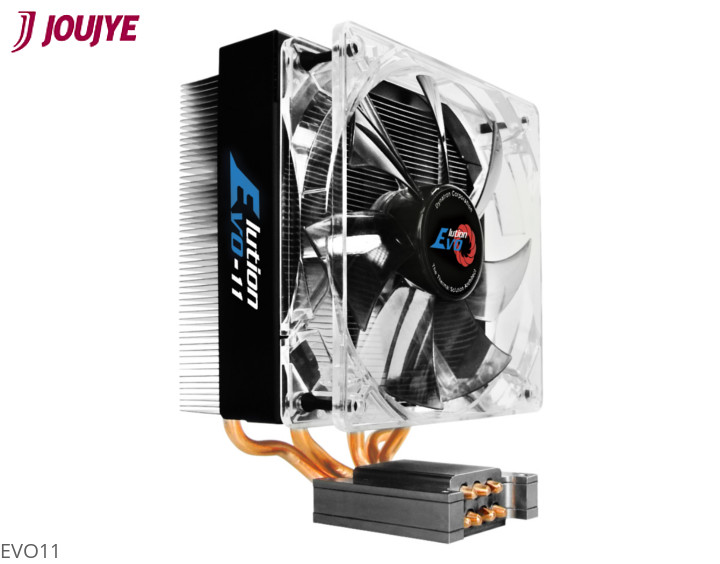

Cooler EVO11 Multi-Platform Intel+AMD Active RoHS

item no.: A 1627

Product in stock
-- €
send inquiry for this product
  • Description
  • Specs
  • Downloads
  • Related Products

  • Intel Core i7, Core 2 Extreme, Core 2 Quad, Core 2 Duo, Pentium D, Pentium 4, Celeron D, Celeron AMD Phenom II X4, Phenom, Athlon 64 FX, Athlon 64 X2, Athlon 64, Sempron
  • Desktop solution
  • Multi-Platform performance cooler, suitable for Intel(LGA 1366, LGA 775), AMD(AM2, AM2+, AM3)
  • High performance cooling solution upto 130 watts CPU
  • 53 aluminum fins surface design maximize the dissipation surface
  • 7 high transmitted 6mm heatpipes
  • High quality crystal black 12cm fan
  • Innovative Energy-Saving PWM function fan saves up to 30% power
  • Anti-Vibration rubber screws
  • Easily un-install fan become passive solution
  • Pre-Screen on TIG830SP thermal grease
  • SPECIFICATIONS:
    Application
    CPU Socket Intel® Socket LGA 1366, LGA 775
    AMD® Socket AM3, AM2+, AM2
    CPU Intel® Core i7, Core 2 Extreme, Core 2 Quad, Core 2 Duo, Pentium D, Pentium 4, Celeron D, Celeron
    AMD® Phenom II X4, Phenom, Athlon 64 FX, Athlon 64 X2, Athlon 64, Sempron
    Technical Data
    Overall dimension 122 x 108 x157mm
    Weight 688 G
    Heat Sink
    Material Aluminum Heatsink with 7 x D6mm Heatpipes embedded
    Fan
    Dimension 120 x 120 x 25mm
    Speed At Duty Cycle 0%: 1000 RPM
    At Duty Cycle 20%: 1500 RPM
    At Duty Cycle 50%: 1700 RPM
    At Duty Cycle 100%: 2200 RPM
    Bearing sleeve bearing
    Rated Voltage 12 V
    Power At Duty Cycle 0%: 1.2 W
    At Duty Cycle 20%: 2.4 W
    At Duty Cycle 50%: 3.0 W
    At Duty Cycle 100%: 4.32 W
    Air Flow At Duty Cycle 0%: 36.64 CFM
    At Duty Cycle 20%: 54.96 CFM
    At Duty Cycle 50%: 62.28 CFM
    At Duty Cycle 100%: 80.60 CFM
    Noise Level At Duty Cycle 0%: 19.38 dBA
    At Duty Cycle 20%: 28.18 dBA
    At Duty Cycle 50%: 30.90 dBA
    At Duty Cycle 100%: 36.50 dBA
    Air Pressure At Duty Cycle 0%: 0.03 inch-H2O
    At Duty Cycle 20%: 0.06 inch-H2O
    At Duty Cycle 50%: 0.07 inch-H2O
    At Duty Cycle 100%: 0.13 inch-H2O
    Lead Wire Pin Out Pin1-Black (-)
    Pin2-Yellow (+)
    Pin3-Green (Techometer/Signal output)
    Pin4-Blue (PWM)

    Package Contents:
    Evolution 11 CPU Cooler x 1
    Mounting Kits for socket 1366, socket 775, socket AM2/AM2+/AM3
    User Manual x 1
